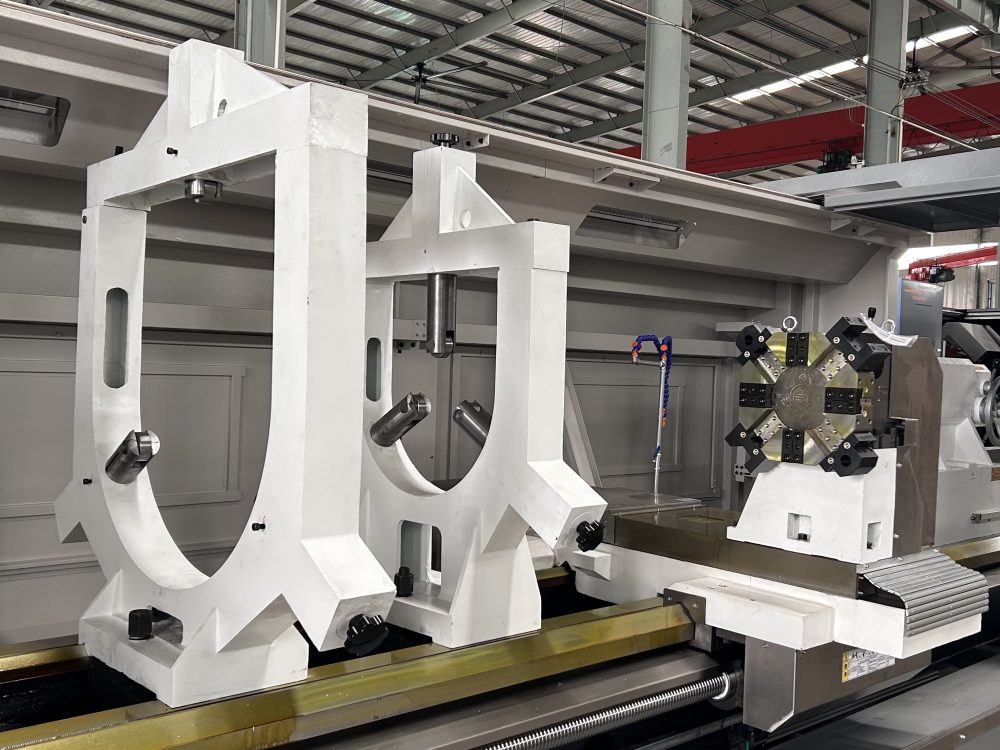

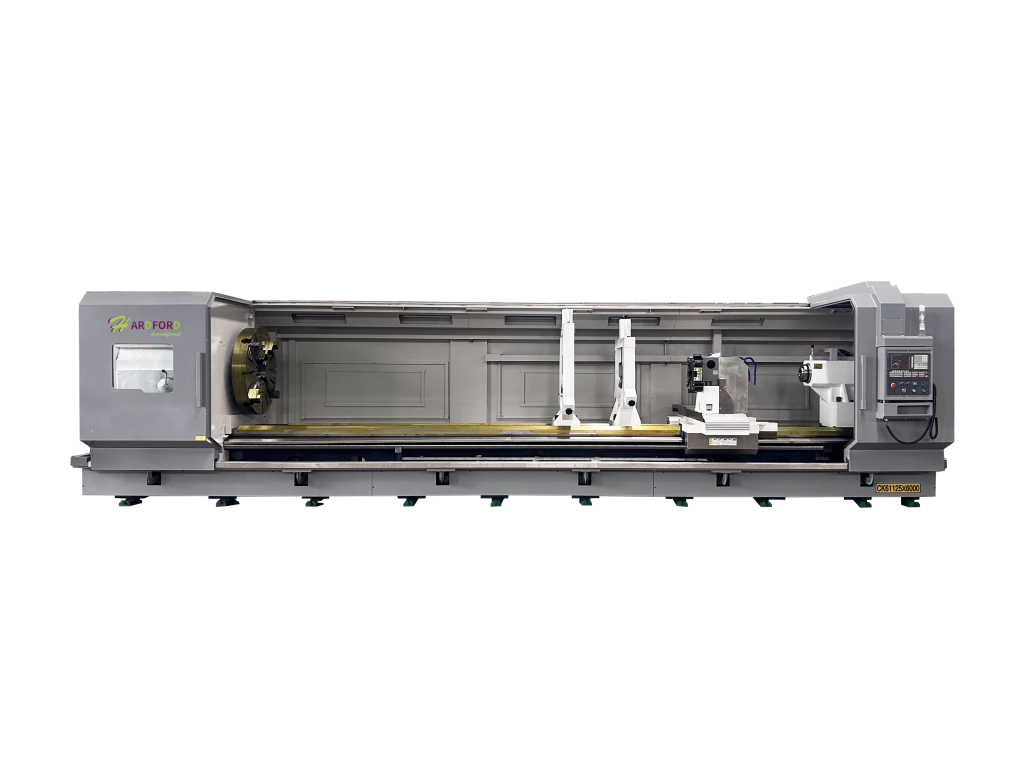

CK61125
Flat-bed CNC lathe
Widened high-stability machine bed / Three-level spindle speed shift + variable-frequency stepless speed regulation / Automatic centralized lubrication system
Get a quote Request the brochureProduct photo gallery
Selling points
- .Features an extended bed structure for improved overall rigidity, vibration resistance and long-running stability under heavy loads.
- .Combines mechanical gear shifting and stepless frequency conversion speed control, delivering stable torque and flexible speed adjustment for diverse cutting processes.
- .Automatically supplies quantitative lubrication to all moving parts, reducing wear, lowering failure rate and extending machine service life.
Specifications
| Specifications | Unit | CYK6180 | CYK61100 | CYK61125 |
|---|---|---|---|---|
| Max.swing over bed | mm | ф800 | ф1000/1100 | ф1250 |
| swing over cross slide | mm | ф480 | ф600 | ф850 |
| Max.processing length | mm | 1500-3000 | 1500-12000 | 1500-12000 |
| X axis travel | mm | X:470 | X:560 | X:650 |
| Rail width | mm | 600 | 700 | 755 |
| Spindle speed | rpm | 25-800 | 25-800 | 4-630 |
| Spindle nose | / | A2-11 | A2-15 | A2-15 |
| Spindle bore | mm | ф105/130 | ф130 | ф130 |
| Spindle motor | kW | 15 | 22 | 22 |
| Ball screw dia.and pitch | / | 3205/6310 | 4006/6310 | 5008/8012 |
| X/Z axis teed motor torque | N.m | 10/18 | 18/22 | 18/22 |
| X/Z Rapid traverse | m/min | 6/8 | 4/6 | 4/6 |
| Processing accuracy | / | IT6-IT7 | IT6-IT7 | IT6-IT7 |
| Hardness of bed guide rail | / | HRC54 | HRC54 | HRC54 |

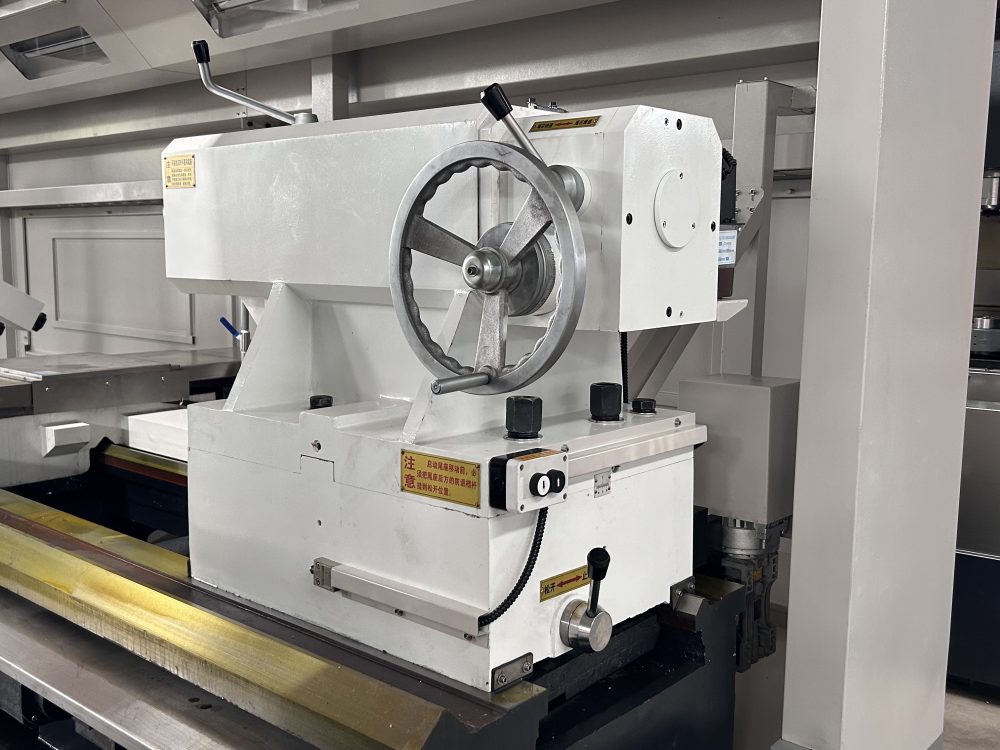

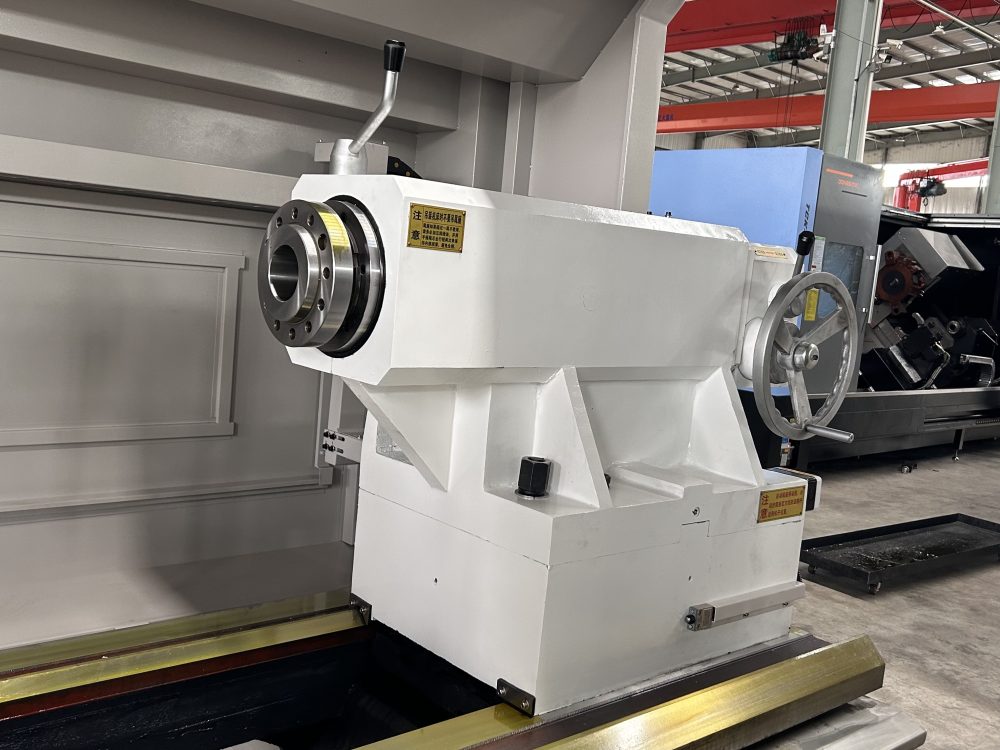

| Tailstock sleeve dia. | mm | ф100 | ф130 | ф160 |
| Quill traverse | mm | 250 | 300 | 300 |
| Quill taper | # | MT6 | MT6 | MT6 |
| Tool post form | / | Four station electric tool holder | Four station electric tool holder | Four station electric tool holder |
| Cutting tool shape size | mm | 32x32 | 45x45 | 45x45 |
| Machine dimension(LxWxH) | m | 3.8/5.6x2.05x1.78 | 4.6x2.0x2.04 | 4.8x2.3x2.3 |
| Net.weighe(about) | T | 5.5/6.8 | 7.5 | 9.5 |
