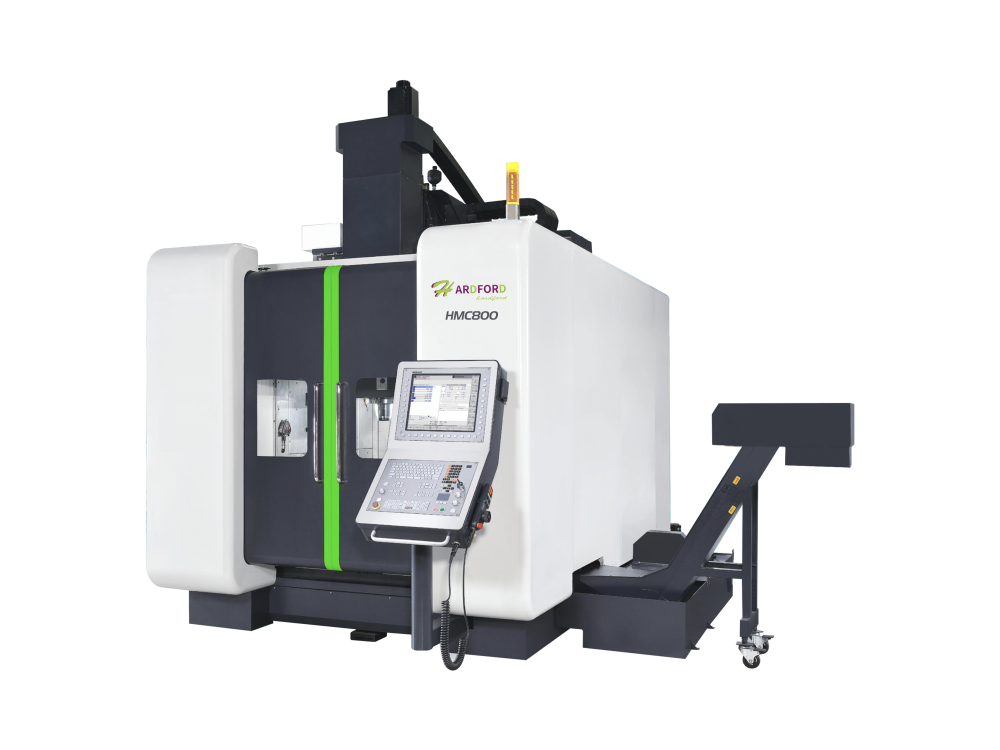

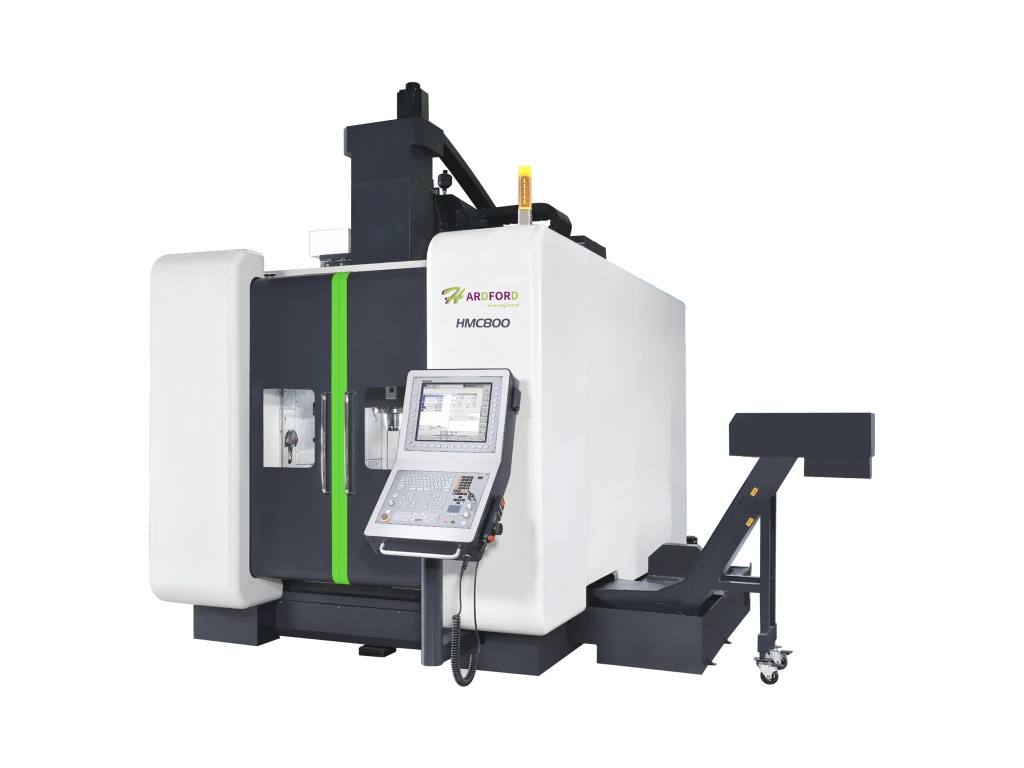

HMC800
5-Axis Simultaneous Machining Centre
Overall Structural Design This CNC gantry machining center adopts a fixed gantry and moving worktable structure, delivering superior structural stability and consistent machining accuracy. The complete machine assembly consists of a heavy-duty worktable, integral cast bed, rigid columns, high-stiffness crossbeam, precision sliding saddle, as well as standardized hydraulic, lubrication, cooling and filtration systems, automatic chip removal device, rotating control panel and full electrical control system. The integrated layout ensures reliable performance, convenient operation and easy daily maintenance.
Get a quote Request the brochureProduct photo gallery
Selling points
- .Premium Casting & Aging Treatment Process
- The gantry bed and core structural components are made of high-quality HT300 grey cast iron. All castings undergo two thermal aging treatments and one high-frequency aging treatment to completely eliminate internal stress. This sophisticated process delivers exceptional structural rigidity, long-term static and dynamic stability, sustainable machining precision and excellent dynamic response performance during continuous operation.
- Independent Low-Load XYZ Linear Axis System
- The XYZ three linear axes are independently arranged on the base bed structure, completely isolated from workbench bearing load and cutting force impact. The low-load moving design avoids structural deformation caused by workpiece weight and cutting vibration, maintaining ultra-high rigidity and long-term running stability of the whole motion system.

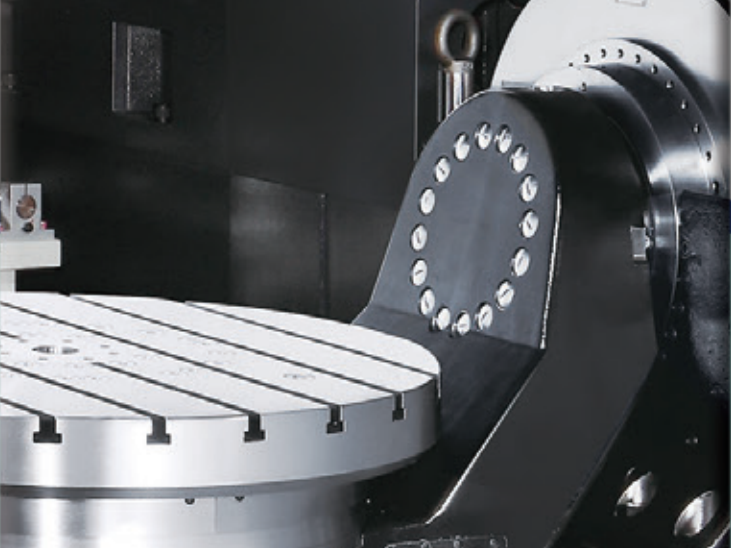

- .High-Precision AC-Axis Rotary Positioning Structure
- The AC-axis rotary table is fixedly mounted on the reinforced bed base, effectively avoiding positioning deviation and accuracy errors during rotary movement. It ensures ultra-high concentricity and rotational center precision during complex 5-axis simultaneous machining, meeting stringent precision requirements for high-end composite processing.
- .Dual DD Direct-Drive Rotary Table with High-Precision Grating Ruler
- The whole machine series adopts dual A-axis DD direct-drive rotary tables. Both A and C axes are equipped with original HEIDENHAIN precision grating rulers. The direct-drive structure features large load capacity, zero backlash and high dynamic response, while the high-precision grating feedback system greatly improves positioning accuracy and long-term precision retention.
- .International Brand Guide Rails & Ball Screws
- The three-axis linear guide rails adopt world-renowned German and Japanese brands (INA/REXRTOH/THK). The three-axis ball screws are equipped with premium Japanese NSK, THK and Taiwan HIWIN brand components. Top-grade transmission accessories ensure smooth feeding, outstanding wear resistance, stable repeated positioning accuracy and extended service life of the machine tool.

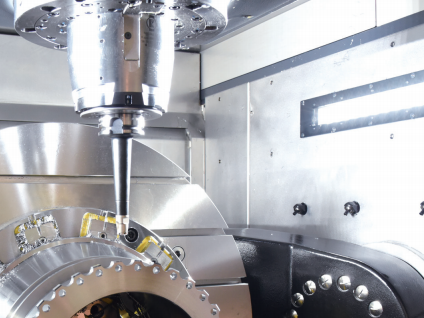

- .High-Torque HSK Electric Spindle
- Equipped with high-precision and high-torque HSK series electric spindle, the machine features excellent thermal stability. The optimized spindle structure effectively suppresses thermal expansion and thermal deformation, eliminating Z-axis accuracy deviation caused by temperature change and ensuring consistent and reliable precision during long-time high-speed machining.
