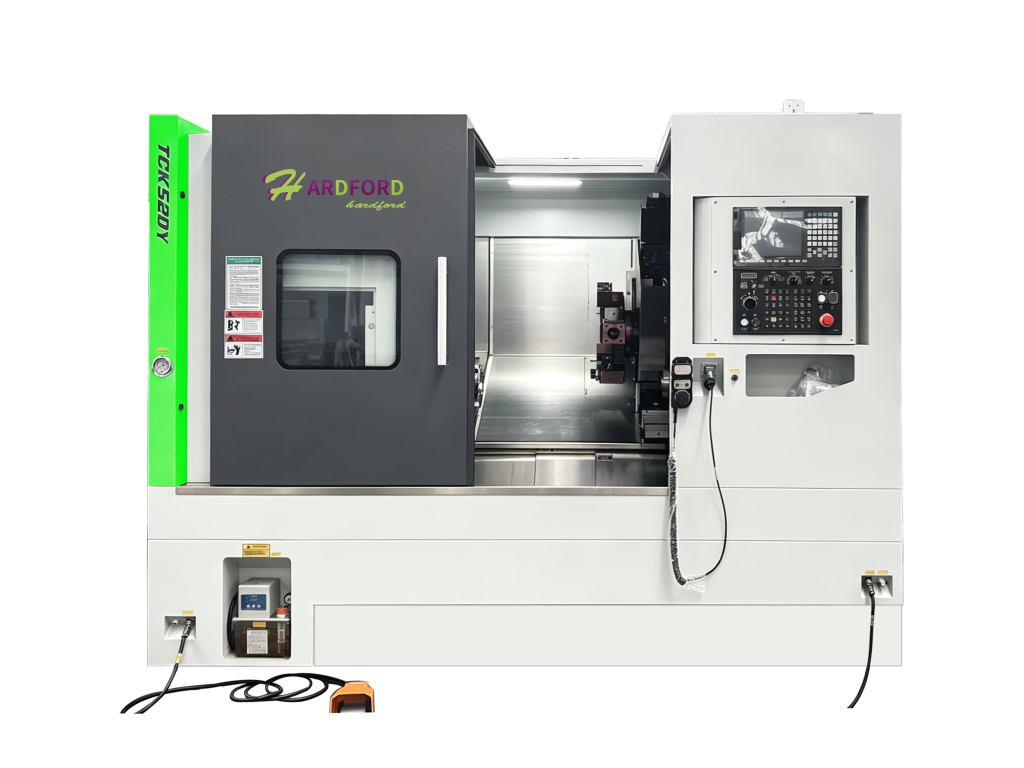

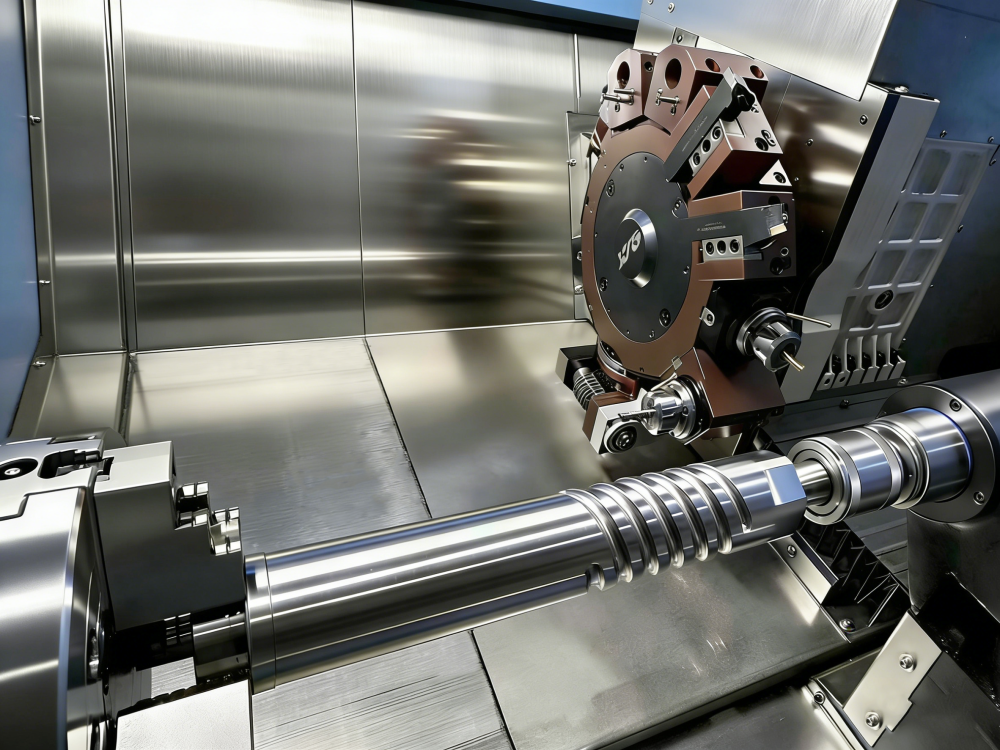

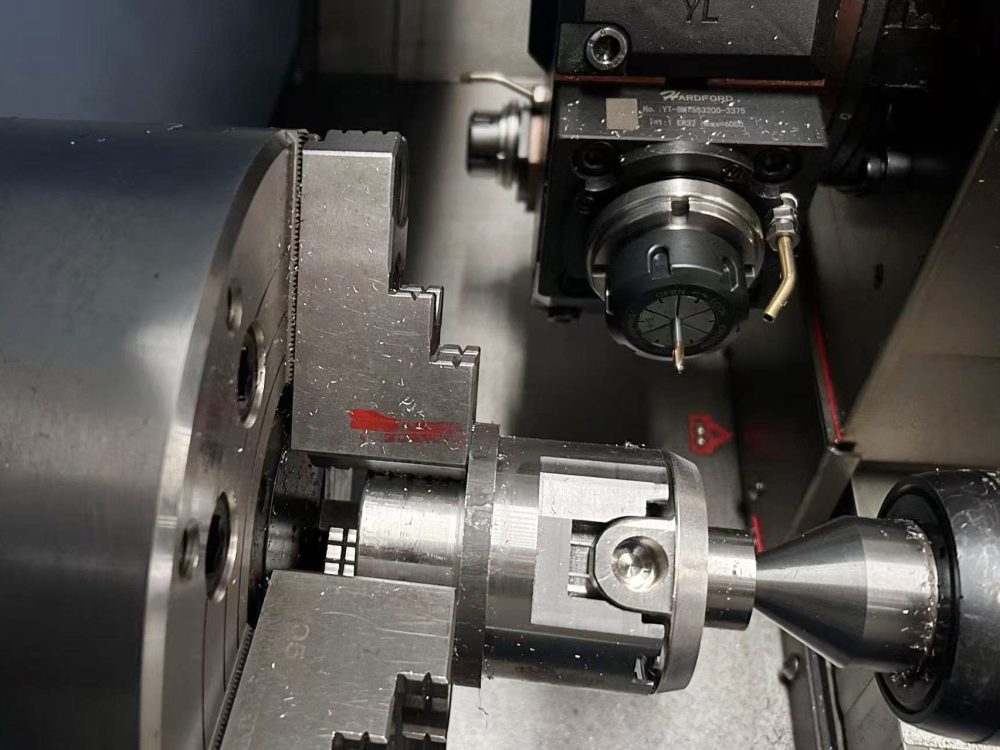

TCK52DY
Multi-axis turning center
It adopts a reliable two-axis feed motion system. The Z-axis travels along the bed guide rail via the saddle assembly, while the X-axis drives the tool slide for precise transverse feeding. The optimized axis motion structure delivers stable operation, high positioning accuracy and consistent machining repeatability.
Get a quote Request the brochureProduct photo gallery
Selling points
- This CNC turning machine is equipped with a rigid integrated 30° inclined bed structure, ensuring excellent structural stability and vibration resistance during high-speed and heavy-duty turning processes.
- Wide Application Fields
- - Automotive Parts Manufacturing: Ideal for mass production of high-precision automotive components, including shaft parts, wheel hubs, gears and engine parts.
- - Aerospace Industry: Perfect for manufacturing critical aerospace components that require ultra-tight tolerance and superior surface finish quality.
- - Heavy Machinery Manufacturing: Well-suited for processing large and heavy-duty components for industrial machinery and construction equipment.
- - Oil & Gas Industry: Reliable for machining valves, pipe fittings and professional drilling equipment parts for the energy and petroleum industry.
- - General Metalworking: Provides efficient and precise turning solutions for standard machine parts, tooling components and various precision mechanical parts.
- - Tool & Die Manufacturing: Excellent for machining high-precision tools and dies for mold forming and industrial processing.
- - Energy Sector: Widely applied in producing core components for power generation equipment and renewable energy devices.
Specifications

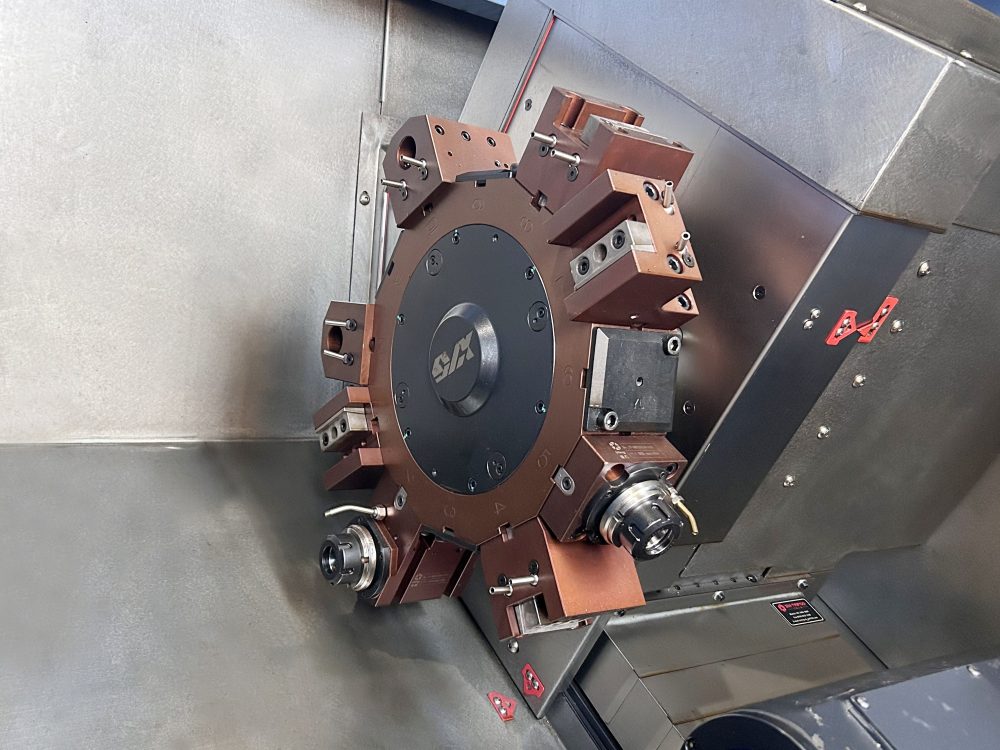

| Entry name | Unit | TCK52 | ||||
|---|---|---|---|---|---|---|
| "Processing | capacity" | Swing over bed | mm | φ580/670 | ||
| Max.turning diameter on carriage | mm | φ330/420 | ||||
| Distance between centers | mm | 600/800/1050 | ||||
| Spindle | Spindle head | 一 | A2-6 | A2-8 | A2-11 | |
| Spindle through hole | mm | φ66/79 | φ86 | φ105 | ||
| Max.spindle speed | rmp | 4200 | 3500 | 2000 | ||
| Bar capacity(<) | mm | φ55/65 | φ75 | φ91 | ||
| Travel | X-axis travel | mm | 260 | |||
| Z-axis travel | mm | 580/820/1070 | ||||
| Y-axis travel | mm | ±50(4 linear guides) | ||||
| "Fast moving | speed" | X-axis fast moving speed | m/min | 24 | ||
| Z-axis fast moving speed | m/min | 24 | ||||
| Turret | Turret position | / | 12 | |||
| Tool size | mm | 25×25 | ||||
| Rotation time of turret | S | 0.5 | ||||
| Tailstock | Tailstock quill | MT | MT5 | |||
| Moving form of tailstock | / | Hydraulic/servo programmable | ||||
| Tailstock travel | mm | 440/660/1000 | ||||
| Tailstock guide rail | / | linearguide ral/boxway | ||||
| Chuck | Hydraulic chuck | inch | 8/10/12. | |||
| Motor | Motor power of main spind | kw | 11/15 | |||
| Other | Machine toolweight (approx.) | T | 3.9/4.3/5 | |||
