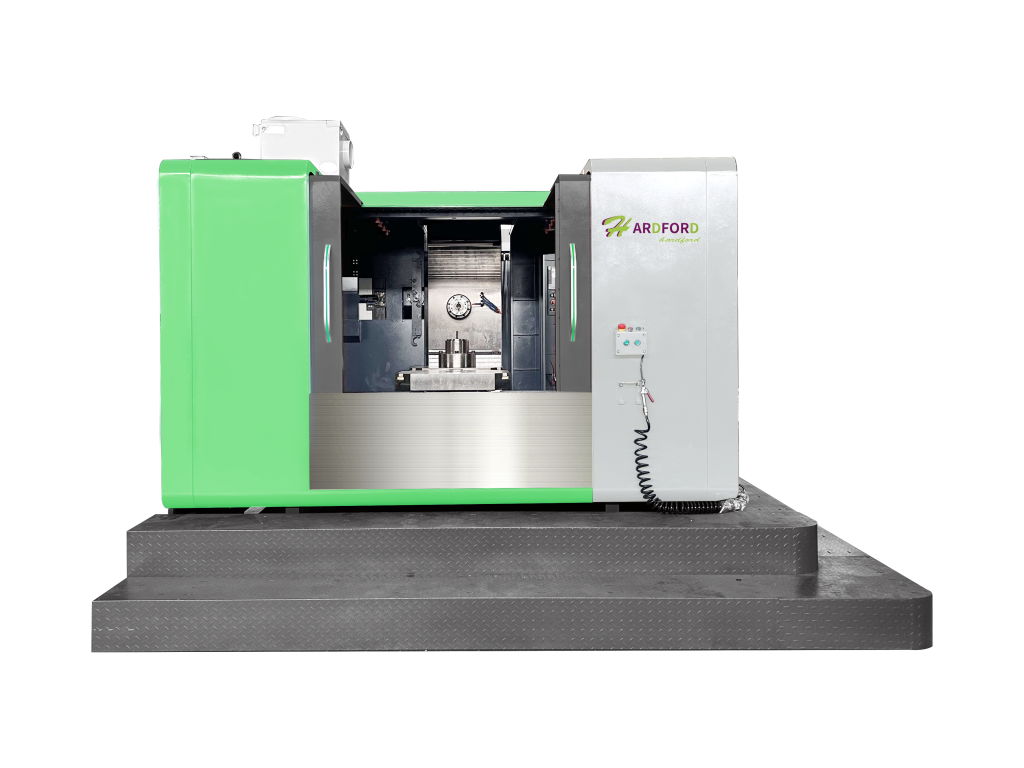

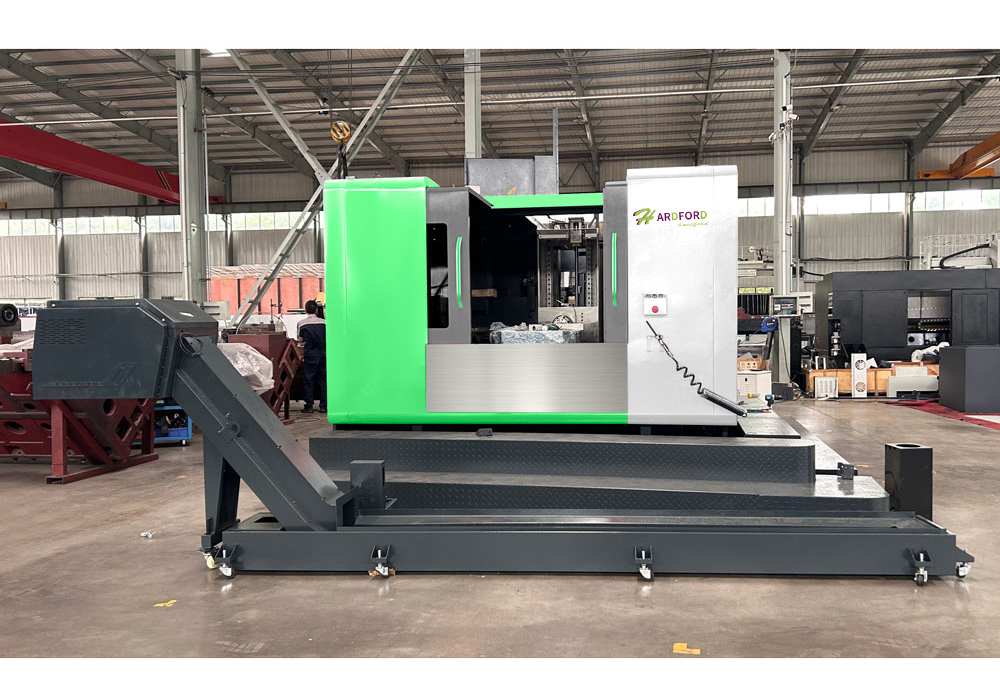

TH630
5-axis horizontal turning and milling center
Horizontal 5-Axis Turning and Milling Machining Center This horizontal 5-axis turning and milling machining center is offered in single-table and dual-table configurations, delivering highly customized and efficient machining solutions to fit diverse production scenarios for precision component manufacturing.
Get a quote Request the brochureProduct photo gallery
PHOTO 4
1000 × 750
Product description
Selling points
- Single-Table Version | High Precision & Compact Structure The single-table model adopts a compact yet high-rigidity structural design, specializing in high-precision and complex surface machining for single-piece and small-batch production. It is ideally suited for precision-demanding industries including aerospace and mold manufacturing. Featuring stable dynamic performance and a high-efficiency tool system, it supports one-clamp multi-process composite turning and milling, completing multi-surface precision forming in a single setup while ensuring outstanding workpiece accuracy and consistent finish.

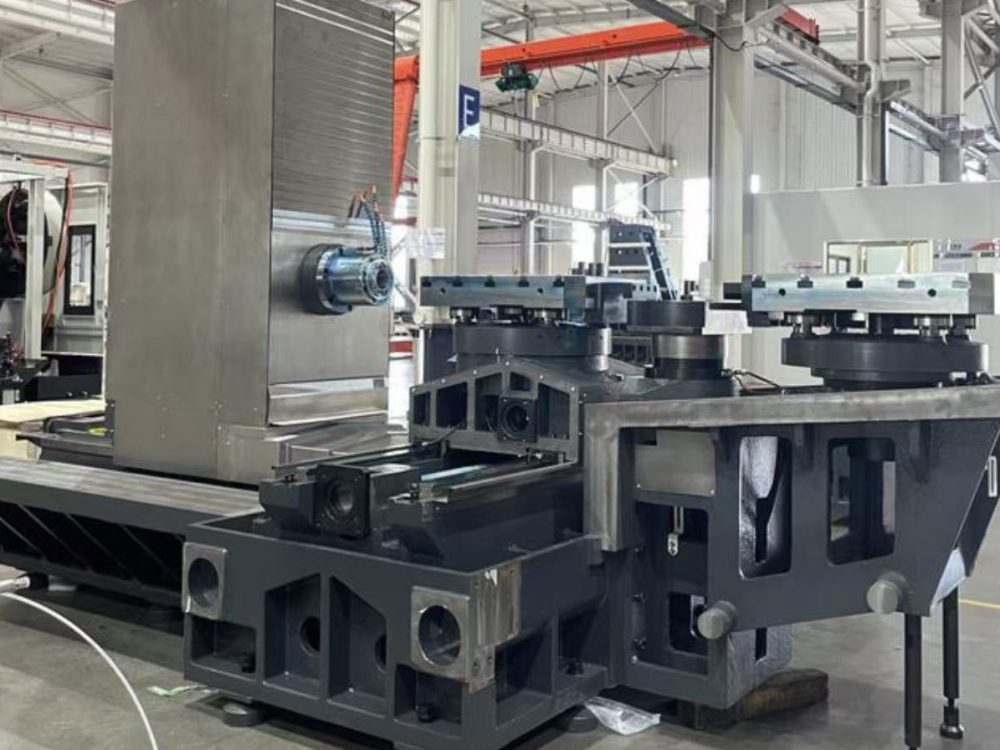

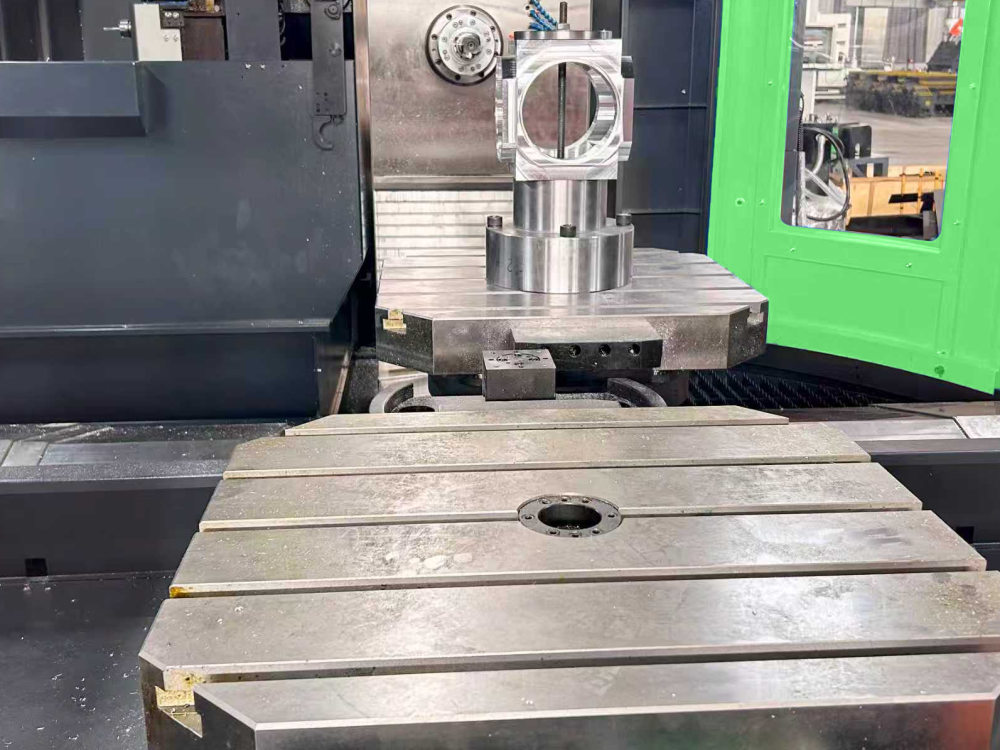

- Dual-Table Version | High Efficiency & Mass Production Engineered for high-cycle batch production, the dual-table configuration enables simultaneous dual-station parallel operation. With superior rigidity and heavy-duty cutting capacity, the machine maintains long-term stable operation under continuous working conditions. The automatic table exchange system eliminates repeated clamping and idle waiting time. While one station is processing workpieces, the other station realizes offline loading and unloading, greatly improving equipment utilization and production throughput. It effectively reduces overall production costs and maximizes operational efficiency, perfectly matching the mass manufacturing demands of automotive, construction machinery and other industrial sectors.
Specifications
| Description | Unit | 630 series | ||||
|---|---|---|---|---|---|---|
| TH630S Dual-station worktable with 1-degree indexing | TH630S-M Dual-station worktable with 0.001-degree indexing. | |||||
| Workbench size | mm | 630X700 | 630X630 | |||
| Table Max.load | Kg | 1000 | 950 | 1200 | 1000 | |
| Workbench type | / | T-slot | Thread | T-slot | T-slot | |
| Workbench exchange time | s | / | 20 | / | 20 | |
| Max.workpiece slewing Diameter | nm | φ1200 | φ950 | φ1200 | φ950 | |
| X/Y/Z-axis travel | mm | 1050/750/900 | ||||
| Spindle bearing inner diameter | mm | 100 | ||||
| Max. spindle speed | rpm | 6000 | ||||
| Spindle center to worktable surface | mm | 120-870 | 0-750 | 100-850 | 0-750 | |
| Spindle nose to worktable center distance | mm | 130-1030 | ||||
| Lead screw specifications | X-axis | mm | 40x12 | |||
| Y-axis | m | 40x12 | ||||
| Z-axis | mm | 50x12 | ||||
| guide rail | X-axis/Y-axis | mm | Heavy-duty 45mm linear guide | |||
| Z-axis | mm | Heavy-duty 55mm linear guide | ||||
| Rapid traverse rate | X/Y/Z-axis | m/min | 24 | |||
| B-axis | r/min | 10 | ||||
| Positioning accuracy | X/Y/Z-axis | mm | 0.01 （Full process） | 0.012 （Full process） | 0.01 （Full process） | 0.01 （Full process） |
| B-axis | " | ±5 | ±10 | ±10 | ±10 | |
| Repeatability positioning accuracy | X/Y/Z-axis | mm | 0.006（Full process） | |||
| B-axis | " | ±4 | ±5 | ±5 | ±5 | |
| Servo Torque | X-axis | N.m | 30 | 22 | 22 | |
| Y-axis(Brake） | N.m | 30 | 30 | 30 | ||
| Z-axis | N.m | 30 | 22 | 22 | ||
| B-axis | N.m | 30 | 22 | 22 | ||
| APC | N.m | 12 | / | 12 | ||
| Overall dimensions | m | 6.6x2.3x2.9 | 6.6x2.3x2.9 |
