VTC1010

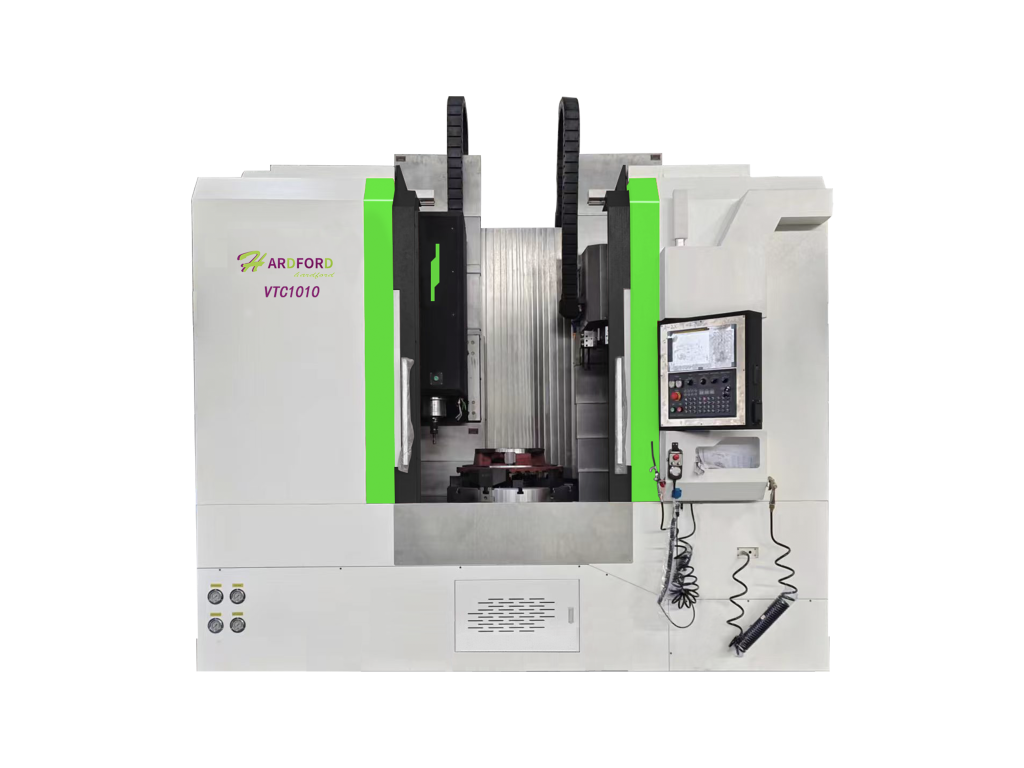

Vertical turning center | VTC1010
The VTC1010 vertical lathe is engineered for machining internal and external cylindrical surfaces, conical surfaces, end faces, grooves and chamfers on workpieces. It is an ideal solution for manufacturing automotive brake drums, wheel hubs, brake discs, clutch pressure plates, flywheel housings and similar components.
| Brand | Hardford |
|---|

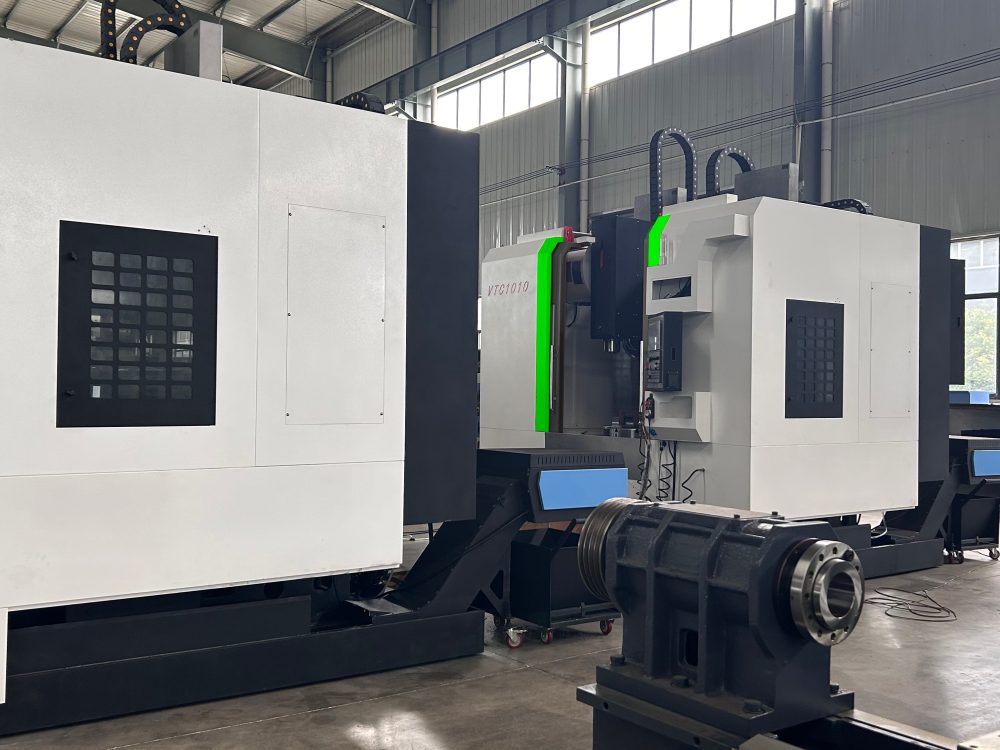

Product photo gallery
Selling points
- Vertical Lathe | VTC1010
- The VTC1010 vertical lathe is engineered for machining internal and external cylindrical surfaces, conical surfaces, end faces, grooves and chamfers on workpieces. It is an ideal solution for manufacturing automotive brake drums, wheel hubs, brake discs, clutch pressure plates, flywheel housings and similar components.
- Key Features
- 1. Built with a cross-slide vertical guideway structure. The column, base and slide are cast from grey cast iron. Guideways on both the column and slide undergo high-frequency quenching, while sliding surfaces receive plasticizing treatment to deliver stable, reliable performance.
- 2. Boasts superior long-term stability and outstanding precision retention. Fully enclosed construction ensures a clean working environment and modern aesthetic.
- 3. Servo motor-driven spindle fitted with imported bearings. It delivers low-speed high-torque output for heavy-duty cutting, supporting semi-precision and precision machining applications.
- 4. X and Z axes adopt servo motor automatic feed control. The Z-axis is equipped with counterweight assembly to enhance structural stability and reduce failure rates.
- 5. Precision ball screws paired with imported special bearings are deployed on X/Z axes, meeting high-precision and high-rigidity cutting requirements.
- 6. The spindle features an external circulating thin-oil lubrication system. Spindle bearings are cooled by an efficient fan; alternatively, the spindle unit adopts a specialized structural design.
Specifications
| Project | Technical parameters VTC1010 | ||
|---|---|---|---|
| Turning range | Maximum rotation diameter of the workpiece | 1000mm | |
| Maximum turning diameter | 850mm | ||
| Vertical movement distance of tool holder | 200-1200mm（Distance between the lower end of the cutterhead | ||
| and the surface of the chuck） | |||
| Horizontal movement distance of tool holder | -50-500mm（The distance between the inner hole turning tool | ||
| and the center of the turning spindle） | |||
| Scope of drilling workers | Maximum drilling diameter | 40mm（U-drill with a distribution diameter less | |
| than 250mm） | |||
| Vertical movement distance of drilling spindle | 150-1150mm（The distance between the lower end of the drill | ||
| shaft and the surface of the chuck） | |||
| Horizontal movement distance of drilling spindle | -50-500mm（The distance between the center of the drilling shaft | ||
| and the center of the turning spindle） | |||
| Turning spindle unit | Turning spindle model | A2-11 | |
| Turning spindle speed range | 20-800rpm （1：2.5 gear ratio） | ||
| Turning spindle motor | 22/30kW | ||

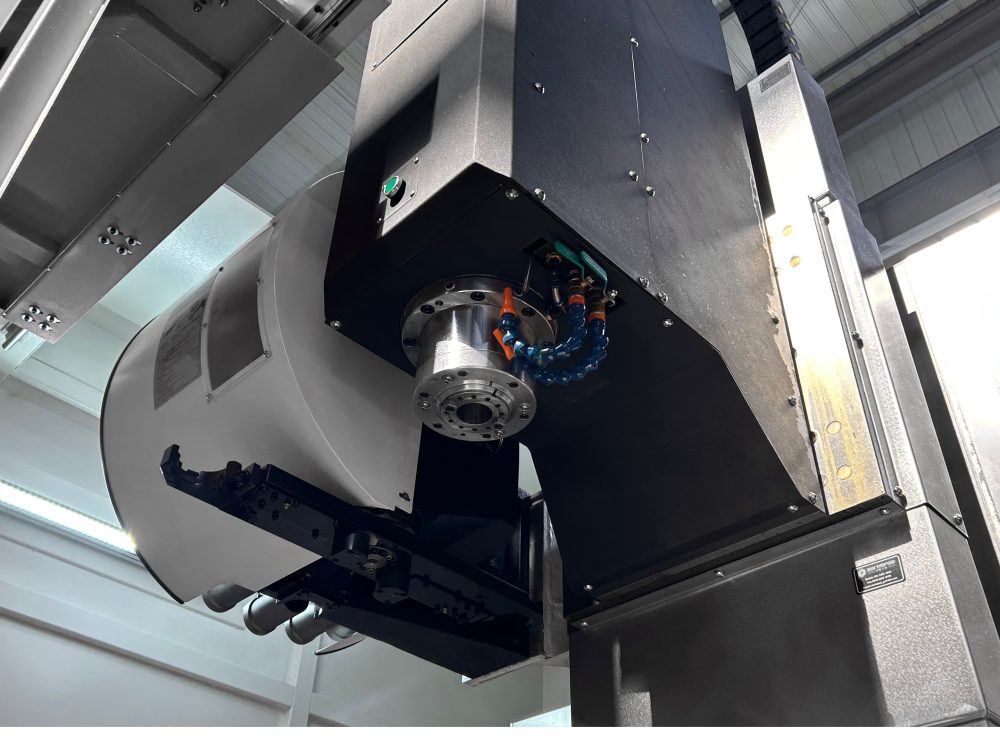

| Drilling spindle unit (center water outlet) | Drilling spindle model | BT40-150 | |
| Drilling spindle speed range | 50-7000RPM（1：1 gear ratio） | ||
| Drilling spindle motor | 11/15KW | ||

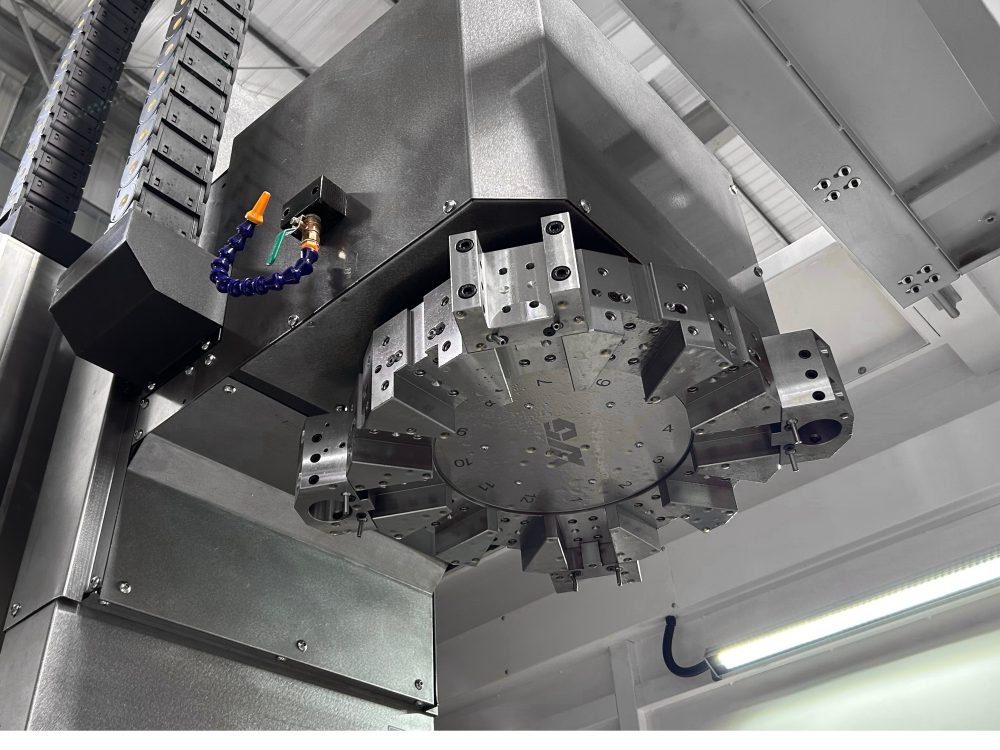

| Tool holder and chuck | 12 station turret | LS-250H | |
| Turret center height | 125mm | ||
| Distance between the opposite sides of the turret | 420mm | ||
| 4 jaw manual chuck | 800mm | ||
| Tool magazine（Drilling shaft，BT40） | Disk cutter magazine | 16T | |
| Maximum tool diameter/length | 78/300mm | ||
| Maximum tool weight | 8KG | ||
| Feed | X1/X2 axis rapid feed rate | 15m/min | |
| Z1/Z2 axis rapid feed rate | 15m/min | ||
| Cutting feed rate | 0.1-5000mm/min | ||
| X1/X2 axis motor power and torque | 2.8 kW /18NM | ||
| Z1/Z2 axis motor power and torque | 3.5 kW /22NM (internal contracting brake) | ||
| Machine tool accuracy | Machine tool positioning accuracy | ±0.008mm | |
| Machine tool repeated positioning accuracy | ±0.005mm | ||
| Dimensions and weight of machine tool optical machine | Machine weight (approximately) | ≈12800kg | |
| Overall dimension | 3500×2950×4200mm | ||
