CK84160

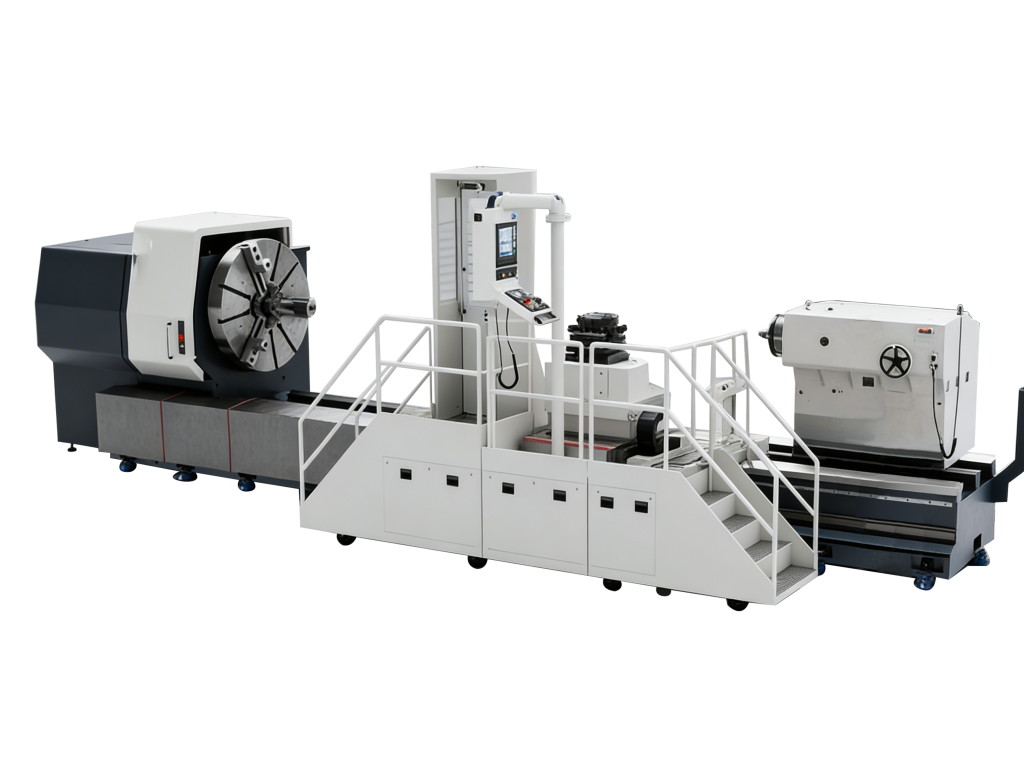

Flat-bed CNC lathe
CNC Roll Lathe | High-Rigidity, Long-Life & Multi-Functional Precision Machining Solution
Get a quote Request the brochureProduct photo gallery
PHOTO 4
1000 × 750
Selling points

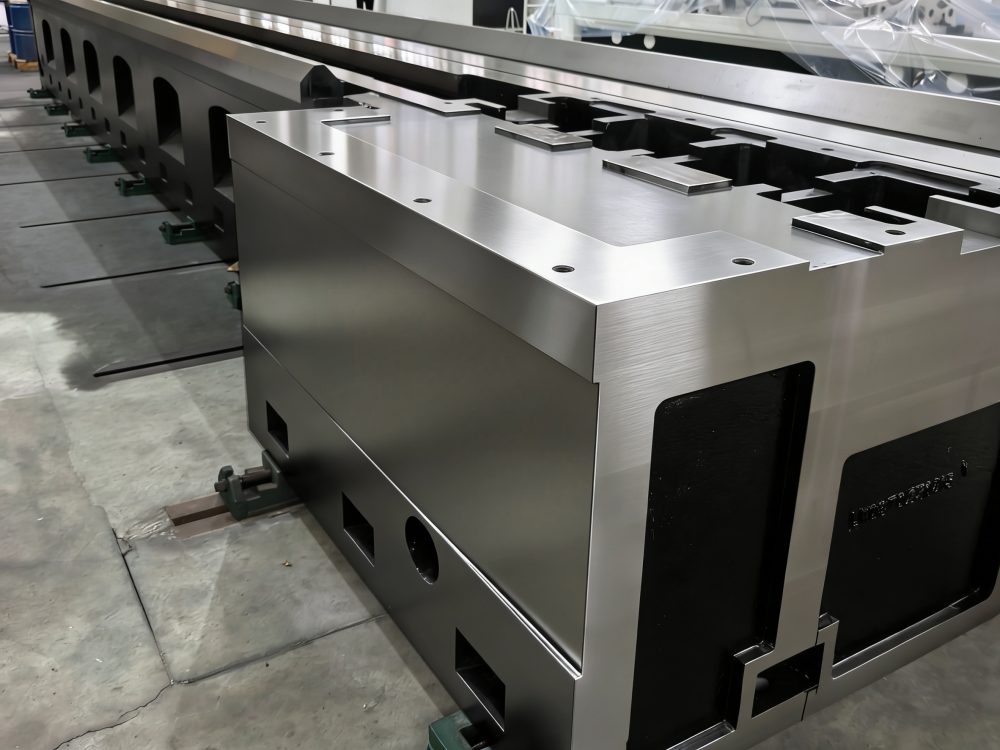

- The CNC roll lathe adopts a high-rigidity integral frame structure, featuring excellent structural stability, durable service life and convenient daily maintenance. It perfectly integrates heavy-duty cutting performance with high-precision machining capability, enabling efficient processing of various planes, curved surfaces and hole systems.
- Equipped with precise three-axis (X, Y, Z) linkage control, the machine supports one-time clamping and multi-process composite machining, including milling, boring, drilling, rigid tapping, reaming and countersinking. It is widely applicable for complex processing of plate-type, box-type and frame-type workpieces in general mechanical manufacturing.

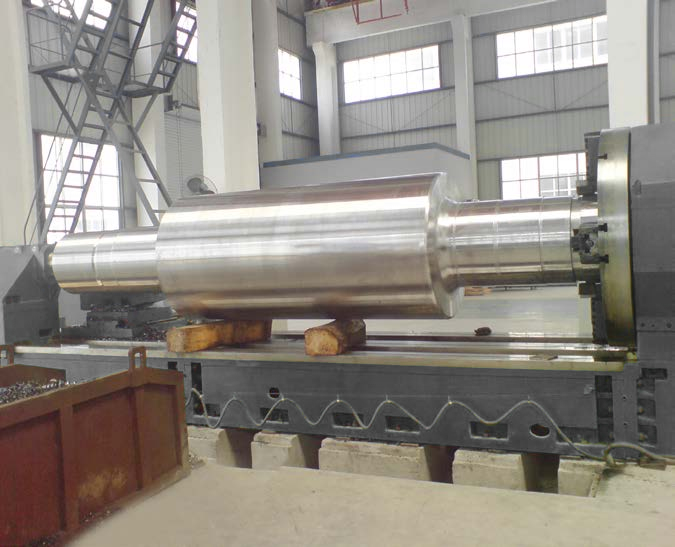

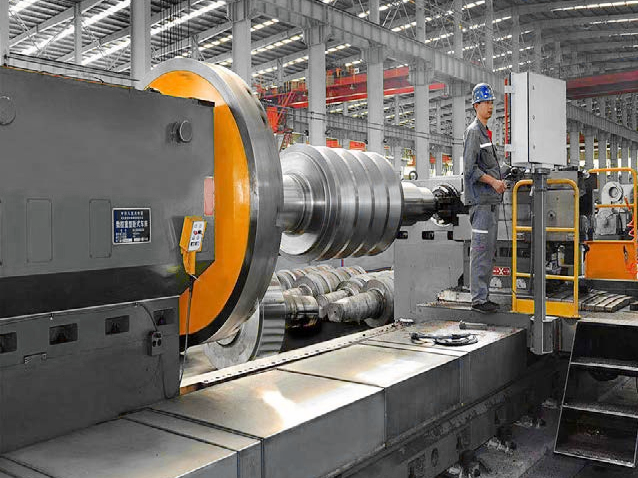

- Professionally optimized for roller machining scenarios, this specialized roll lathe efficiently completes outer cylinder turning, end facing, grooving and rotary surface machining. It is compatible with both smooth rolls and grooved rolls, serving as ideal processing equipment for mass production and precision maintenance of various roller parts.
Specifications
| Item | Uint | Specifications and Models | |
|---|---|---|---|
| CK84125 | CK84160 | ||
| Max.Slewing diameter | mm | Φ1250 | Φ1600 |
| Max. turning diameter | mm | Φ200-Φ1250 | Φ500-Φ1600 |
| Max. workpiece length | mm | 5000/6000/8000 | 5000/6000/8000 |
| Max. turning length | mm | 5000/6000/8000 | 5000/6000/8000 |
| Guide rail width | mm | 1615 | 1850 |
| guide rail | / | 4-box way | 4-box way |
| max. load capacity of machine tool | T | 20 | 50/63 |
| X-axis travel | mm | 500 | 700 |
| Y-axis travel | mm | 5050/6050/8050 | 5050/6050/8050 |
| X/Z-axis fast moving speed | m/min | 3/6 m/min | 3/6 m/min |
| X/Z-axIsMinimum feed | mm/min | 1 | 1 |
| Spindle Speed (Stepless) | rpm | 4-200rpm | 4-200rpm |
| chuck | mm | Φ1000 | Φ1000 |
| cutter bar | mm | 50×50 | 60×60 |
| tailstock sleeve diameter | mm | Φ300 | Φ500 |
| tailstock travel of sleeve | mm | 300 | 300 |
| Power of spindle motor | KW | AC75 | AC110 |
| Power of spindle motor | KW | AC90 | AC90 |
| Working precision | / | IT6~IT7 | IT6~IT7 |
