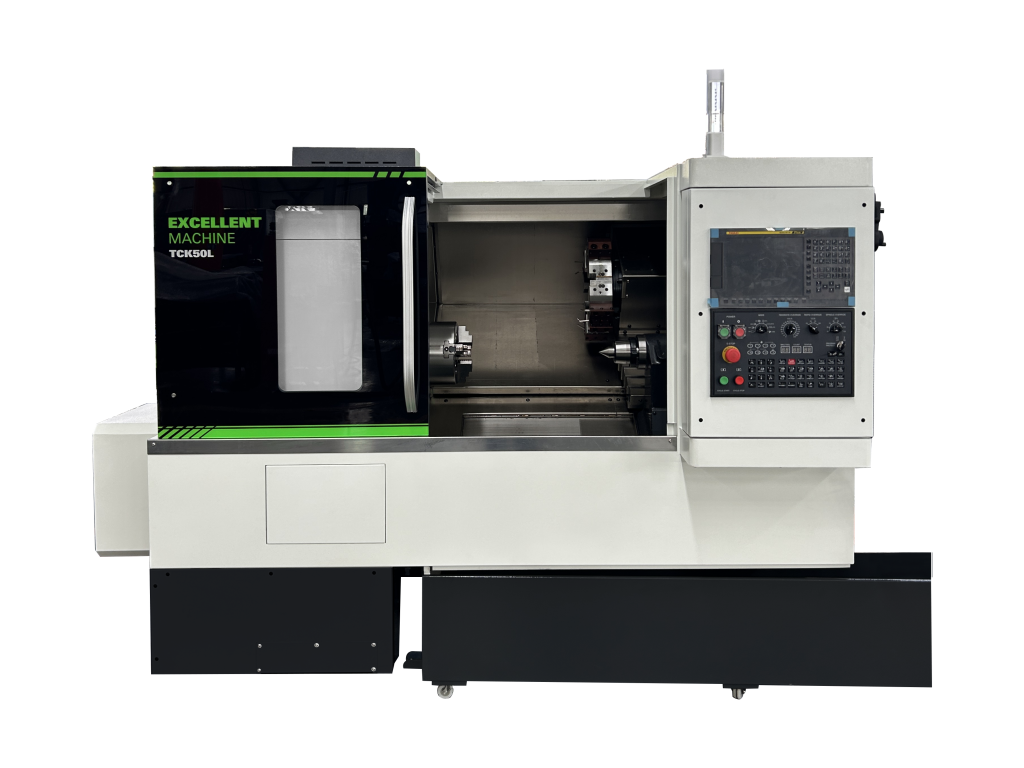

TCK50L
Horizontal turning center
SLANT BED AND LINEAR GUIDE WAY CNC LATHE Slant bed and linear guide way cnc lathe

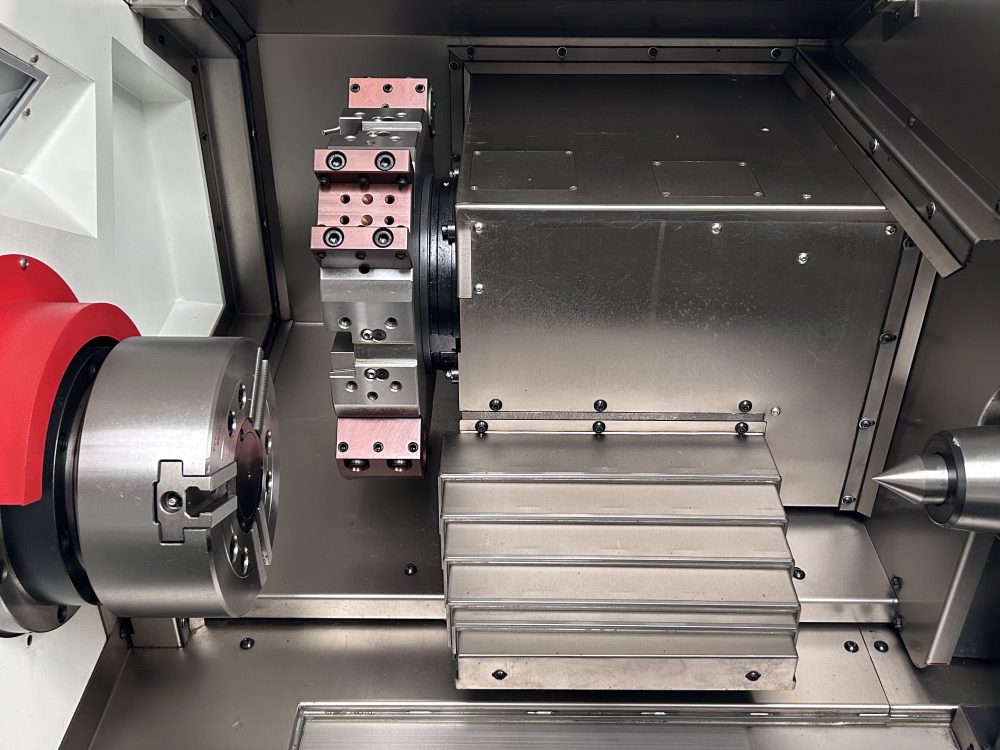

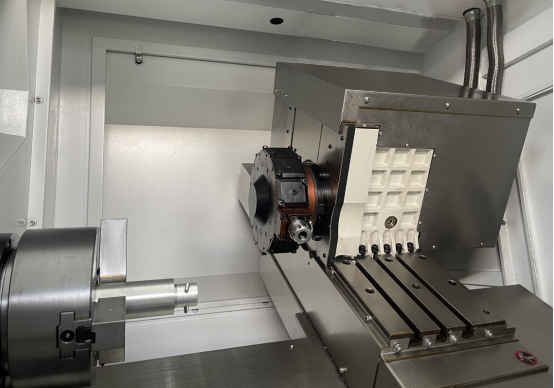

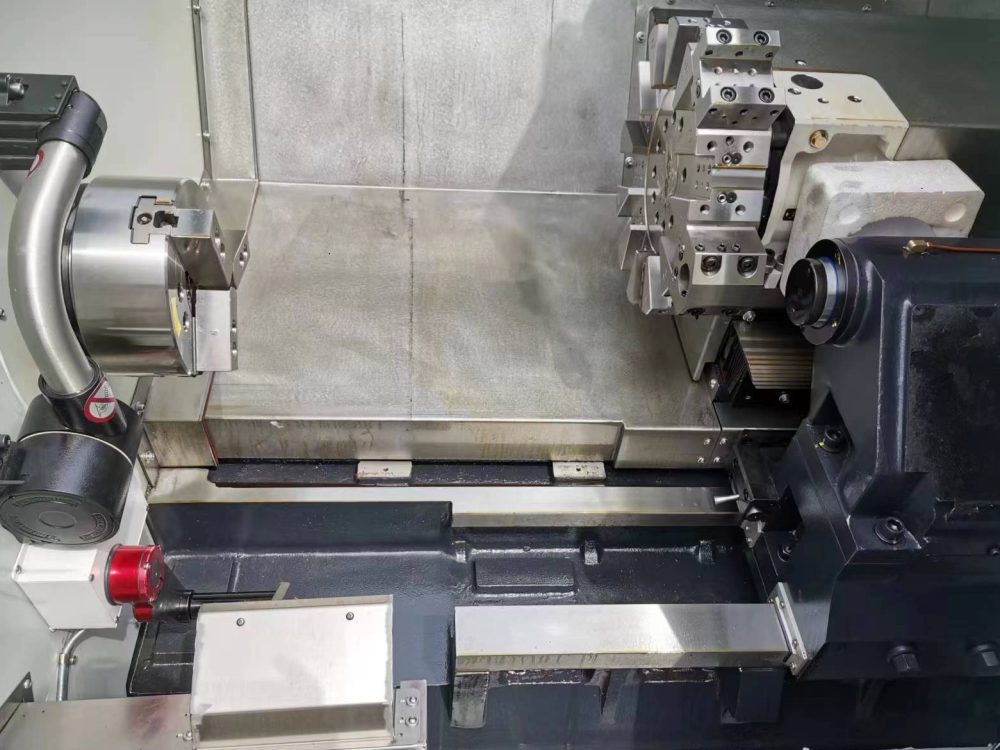

Get a quote Request the brochureProduct photo gallery
Selling points
- Features of inclined bed lathe
- .Roller linear guide
- .C3 ball screw
- .Imported precision bearing
- .Servo hydraulic turret
- .Optional power turret
- .Tool setting instrument is optional
Specifications
| Specifications | Uint | TCK50L |
|---|---|---|
| Swing over bed | mm | φ550 |
| Swing over slide | mm | φ400 |
| Effective turning length | mm | 450 |
| Spindle head form | − | A2-6 |
| Spindle motor power | kw | 11-15 |
| Max spindle speed | rpm | 4200 |
| Diameter of spindle through hole | mm | φ66/79 |
| Bar capacity | mm | φ55/65 |
| Hydraulic chuck | inch | 8"/10" |
| Turret form | − | − |
| X-axis travel | mm | 210 |
| Z-axis travel | mm | 500 |
| X/Z axis motor torque | n.m | 10/10 |
| Specification of X/Z lead screw | − | 3210/4010 |
| Repeat positioning accuracy | mm | ±0.004 |
| Tool size | mm | 25×25/32 |
| Tailstock sleeve travel | mm | 300 |
| Taper hole in sleeve | MT | 5 |
| Dimensions | m | 2.65x1.75x1.75 |
| Machine weight (approx) | t | 3.5 |
