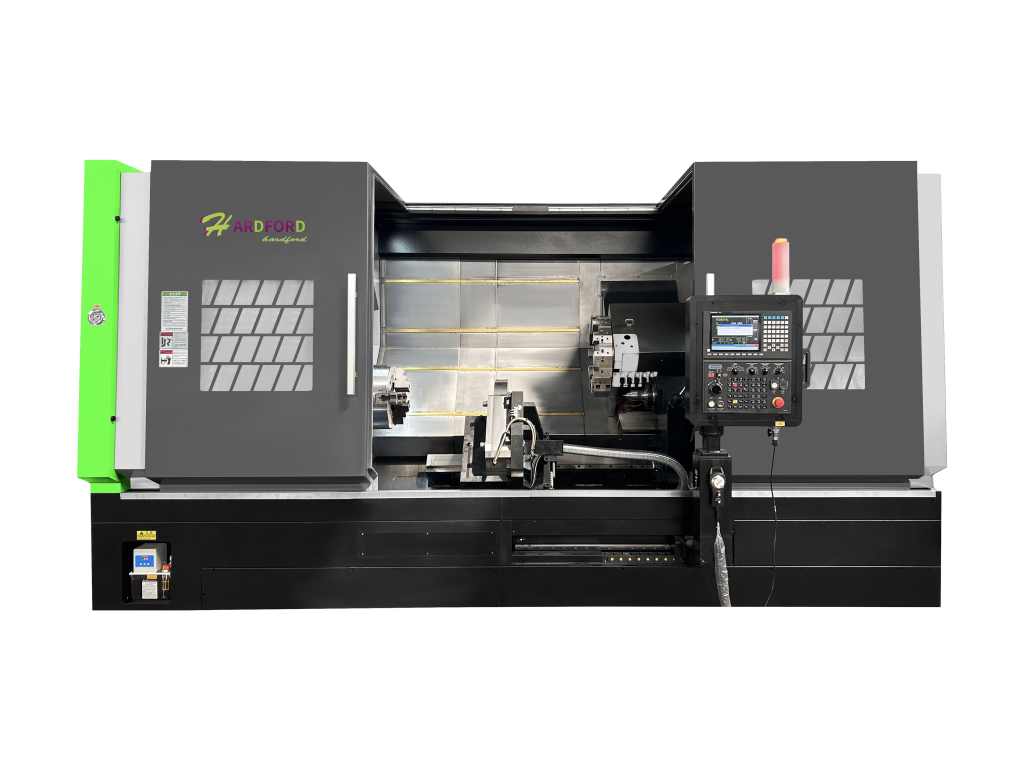

TCK700
Horizontal turning center
Powerful & Versatile Machining Performance The TCK700 Engineered for universal machining scenarios, this CNC lathe supports high-precision and high-repeatability processing of diverse materials. It handles both simple standard workpieces and intricate complex parts stably, delivering consistent dimensional accuracy and reliable machining quality for various industrial production demands.
| Brand | Hardford |
|---|

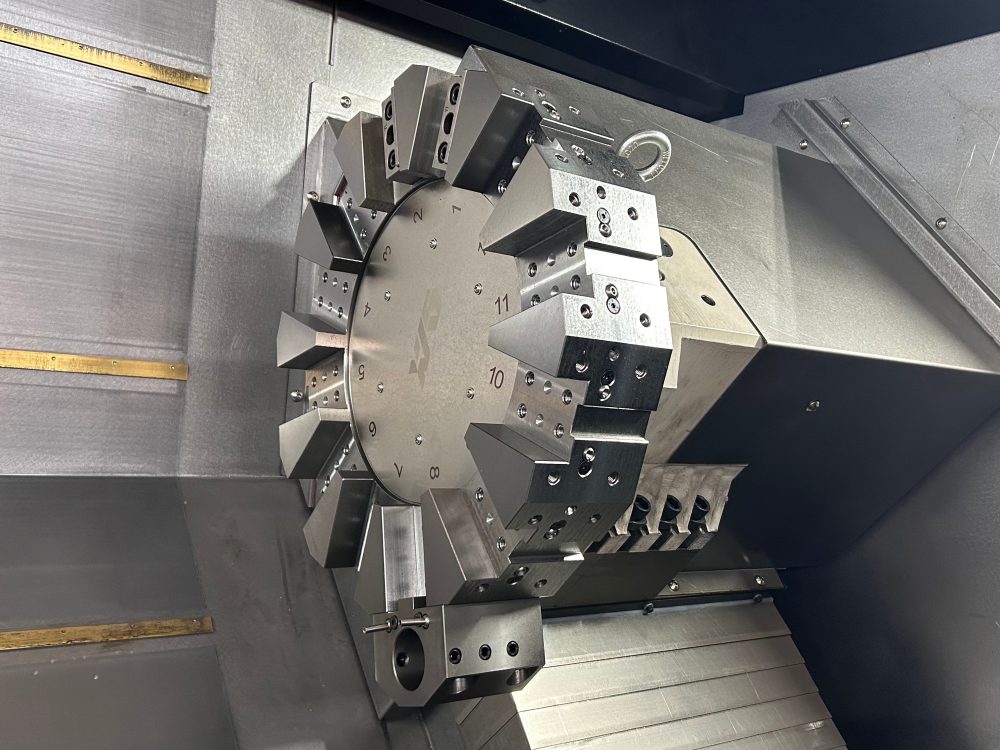

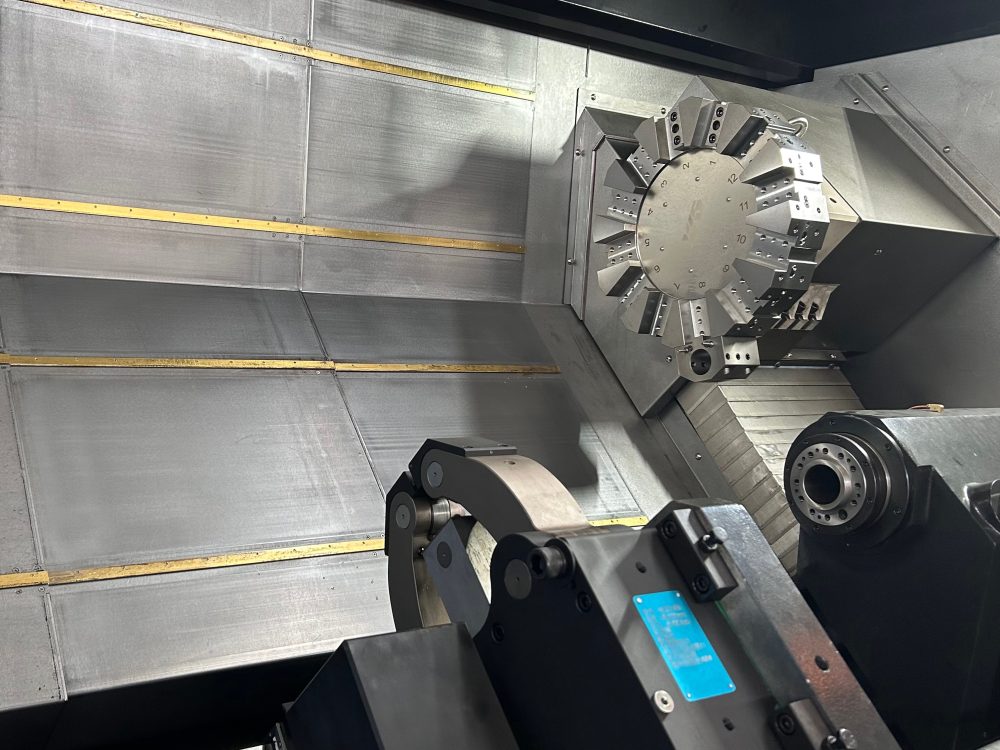

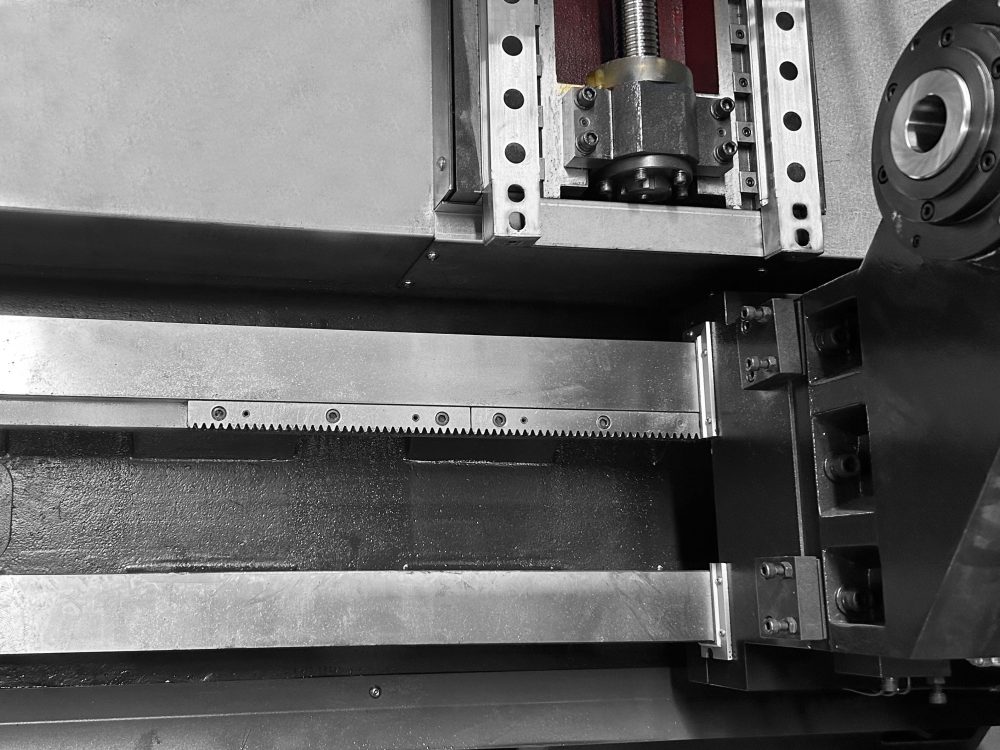

Product photo gallery
Product description
Selling points
- Optimized 45° Slant Bed Structure
- The TCK700 series features a rigid one-piece 45° inclined bed constructed from high-strength cast iron. This integrated casting design delivers outstanding structural rigidity and long-term operational stability. The scientific slant bed layout ensures smooth and efficient chip removal, enabling uninterrupted continuous machining and greatly improving overall production continuity.
- Wide Application Fields
- High-precision Industrial Machining: Ideal for industries with ultra-strict tolerance standards, including automotive manufacturing, aerospace engineering and medical device production.
- Mold & Tool Manufacturing: Perfect for custom processing of industrial tools, fixtures and various precision tooling accessories for mold production.
- Electronics Industry: Capable of ultra-fine machining of tiny precision components for consumer electronics, connectors and electronic assembly parts.
- Automotive Component Production: Specialized in mass manufacturing of high-precision engine parts, chassis components and customized automotive mechanical parts.
Specifications
| Description | Unit | TCK700 | |||||
|---|---|---|---|---|---|---|---|
| Capacity | Swing over bed | mm | φ780 | ||||
| Swing over saddle | mm | φ500 | |||||
| Chuck size | inch | 12/15/18/21/24 | |||||
| Travels | X-axis | mm | 350 | ||||
| Y-axis | mm | ±75 | |||||
| Z-axis | mm | 1000/1500/2000/3000/4000/5000 | |||||
| Feedrates | Rapid traverse rate X-axis | mm/min | 16 | ||||
| Rapid traverse rate Y-axis | mm/min | 10 | |||||
| Rapid traverse rate Z-axis | mm/min | 16 | |||||
| Main Spindle | Main spindle motor power | kw | 22(30) | ||||
| Spindle Ratio | / | 1:3 | |||||
| Spindle Ratio optional gearbox | / | 1:8 | |||||
| Spindle nose | ASA | A2-8 | A2-11 | A2-11 | A2-15 | ||
| Through hole of main spindle | mm | φ88 | φ105 | φ132 | φ181 | φ220 | |
| Bar capacity | mm | 75 | 90 | 120 | 166 | 220 | |
| Spindle bearing diameter (Front) | mm | 180 | 240 | 280 | 360 | 420 | |
| Turret | No. of tool stations | 个 | 12 | ||||
| OD tool size | mm | 32×32 | |||||
| Max. boring bar size | mm | 50 | |||||
| Turret indexing time(1 station swivel) | s | 0.5 | |||||
| Max. rotary tool speed | r/min | BMT65(4000) | |||||
| Rotary tool motor power | kw | 5.5/6.5 | |||||
| Tailstock | Tail stock travel | mm | 1100/1600/2100/3100/4100/5100 | ||||
| Sleeve diameter | mm | 150/160 | |||||
| Travel of sleeve | mm | 180 | |||||
| Sleeve bore taper | MT | MT5/MT6 |
