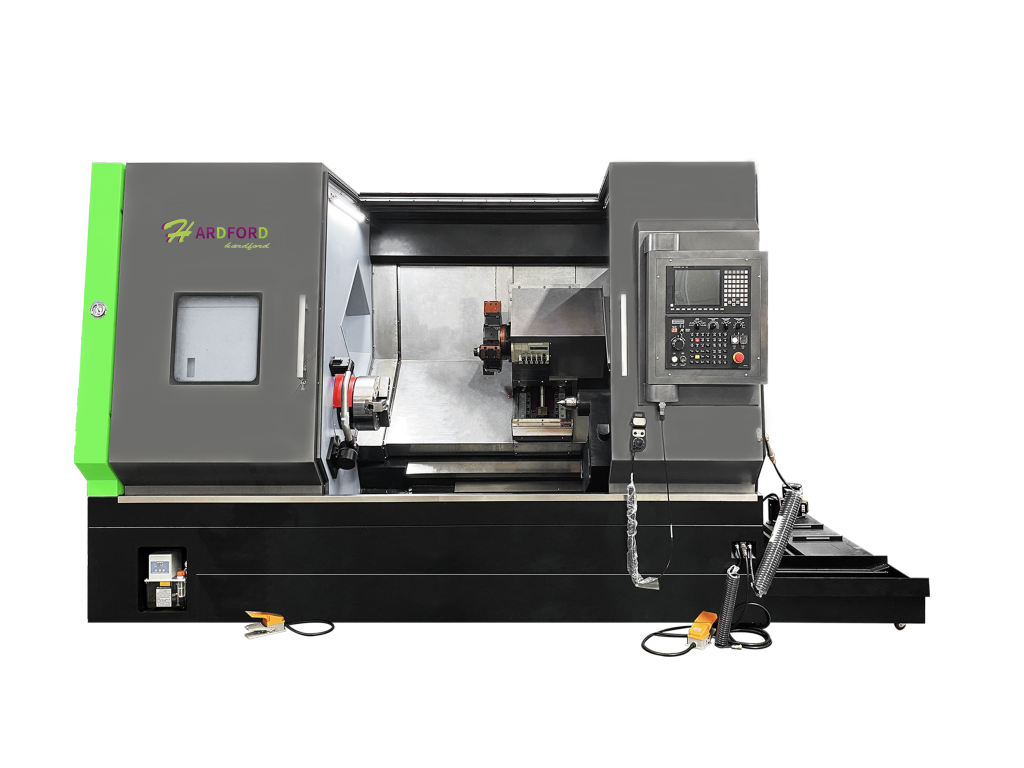

TCK600D
Multi-axis turning center
The TCK600D CNC turning center adopts an advanced turn-mill integrated design, combining precision turning and multi-axis milling functions in one single machine. Built with a high-rigidity integral bed structure, it delivers exceptional structural stability and cutting performance.
Get a quote Request the brochureProduct photo gallery
Product description
Selling points
- Wide Application Fields
- Aerospace Industry: Enables ultra-precision machining of high-demand components such as turbine blades, mounting brackets and equipment casings, fully meeting strict aerospace accuracy and surface quality standards.
- Automotive Industry: Ideal for mass production of high-precision engine parts, transmission components and core structural parts, supporting high-speed and stable machining for automotive core components.
- Heavy Industry: Reliable for processing large-scale, high-tolerance industrial workpieces including gears, precision shafts and other heavy mechanical components.
- Tool & Die Manufacturing: Perfect for high-precision processing of various molds, dies and customized precision tooling for industrial production.
- Energy & Power Industry: Specialized in precision machining of core energy equipment parts, covering turbine components, control valves and other critical power industry components.
- General Precision Manufacturing: Versatile enough for high-precision part production across medical equipment, military industry, consumer goods and various other manufacturing fields.
Specifications
| Description | Unit | TCK600 | |||
|---|---|---|---|---|---|
| Capacity | Max.swing over bed | mm | φ650 | φ750 | |
| Max.swing over saddle | mm | φ400 | φ500 | ||
| Chuck size | inch | 10/12/15 | |||
| Travels | X-axis | mm | 300 | ||
| Y-axis | mm | ±50 | |||
| Z-axis | mm | 1100/1600/2100 | |||
| Feedrates | Rapid traverse rate X-axis | mm/min | 24 | ||
| Rapid traverse rate Y-axis | mm/min | 24 | |||
| Rapid traverse rate Z-axis | mm/min | 24 | |||
| Main Spindle | Main spindle motor power | kw | 22｛30｝ | ||
| Spindle nose | ASA | A2-8 | A2-11 | ||
| Spindle Ratio | / | 1:2 | 1:3 | ||
| Through hole of main spindle | mm | φ86 | φ105 | φ132 | |
| Bar capacity | mm | ＜75 | ＜91 | ＜120 | |
| Spindle bearing diameter (Front) | mm | 180 | 240 | 280 | |
| Max. spindle speed | r/min | 3000 | 2000 | 1500 | |

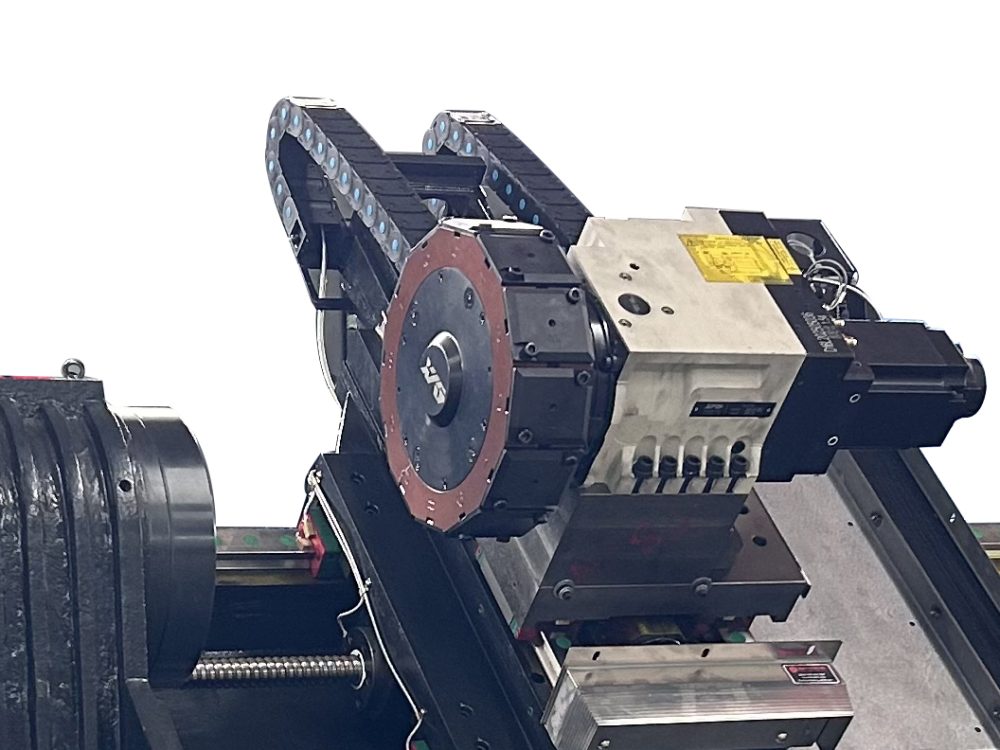

| Turret | No. of tool stations | 个 | 12 | ||
| OD tool size | mm | 25×25 | |||
| Max. boring bar size | mm | 40 | |||
| Turret indexing time (1 station swivel) | s | 0.5 | |||
| Max. rotary tool speed | r/min | BMT55(4000) | |||

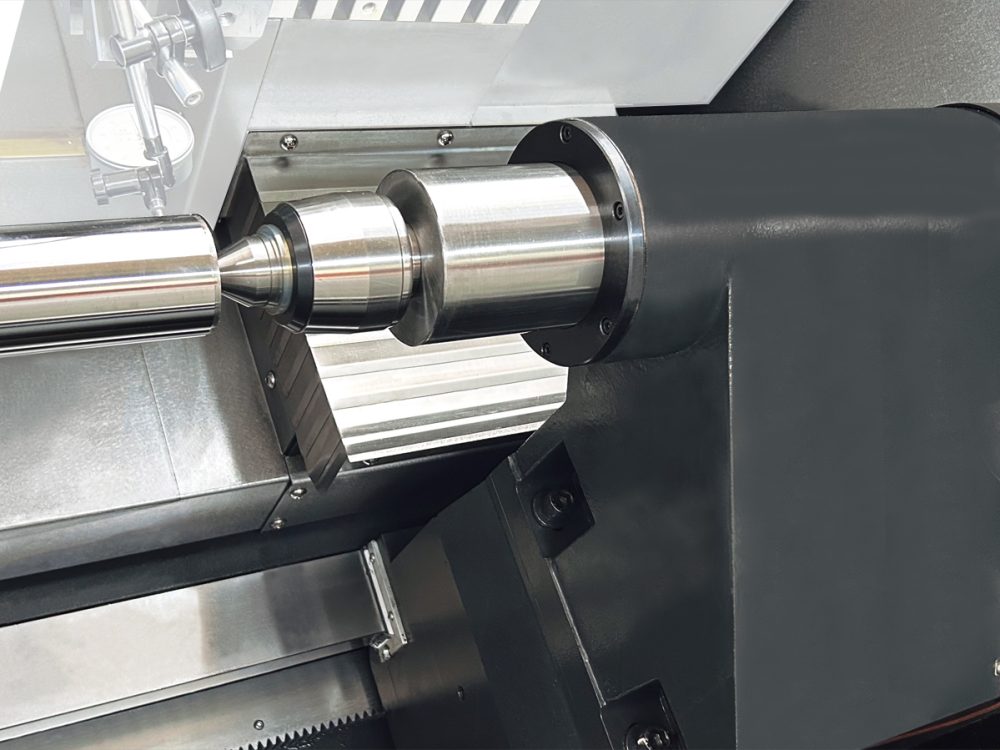

| Tailstock | Tailstock guide rail | mm | 硬轨/线轨 | ||
| Sleeve diameter | mm | 100 | |||
| Tailstock of sleeve | mm | 1100/1600/2100 | |||
| Taper of sleeve hole | MT | MT5 |
