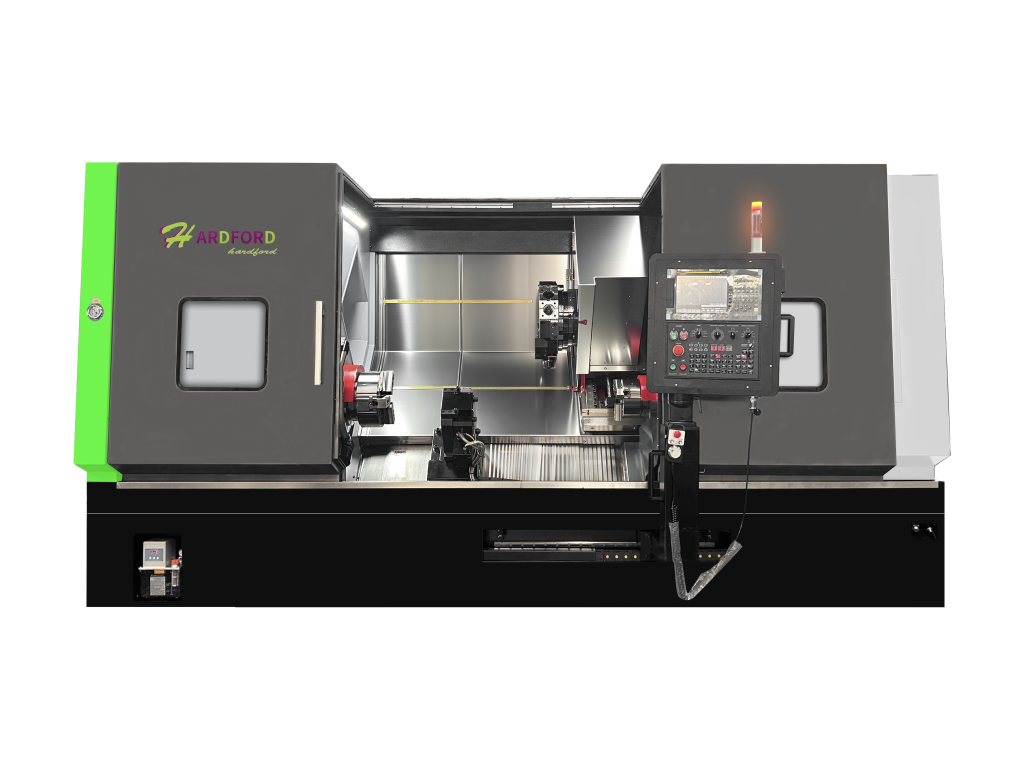

TCK600DYS
Multi-axis turning center
TCK600DYS Double Spindle Turning Center the machine bed delivers exceptional structural rigidity, superior stability and excellent vibration resistance for long-term heavy-duty operation. Benefiting from professional twin-spindle synchronous machining design, the machine drastically shortens machining cycle time, maximizes production throughput and significantly boosts overall manufacturing efficiency compared with single-spindle machine tools.
Get a quote Request the brochureProduct photo gallery
Selling points
- The TCK600DYS twin-spindle turning center adopts a rigid one-piece 45° inclined bed structure crafted from premium HT300 high-strength cast iron. Manufactured with advanced resin sand casting technology and equipped with scientifically optimized internal reinforcement ribs.
- Wide Application Fields
- Automotive Industry: Optimized for mass production of high-precision automotive core components, including engine blocks, precision shaft parts and other critical structural parts with strict tolerance requirements.
- Aerospace Manufacturing: Perfect for processing intricate, high-tolerance aerospace parts such as turbine blades and precision structural components, complying with rigorous aerospace manufacturing standards for accuracy and stability.
- Heavy Machinery Manufacturing: Well-suited for large-scale batch machining of complex, heavy-duty workpieces widely applied in construction machinery and industrial equipment.
- Oil & Gas Industry: Enables efficient and stable machining of high-strength, durable industrial parts including valves, pipeline fittings and flanges, meeting the strict performance demands of harsh oil and gas working environments.
- Die & Tool Manufacturing: Delivers high-speed, ultra-precise turning performance for various industrial molds, tooling and dies, ensuring consistent dimensional accuracy and superior surface finish.
- General Metalworking: Features strong universal machining capability for steel, aluminum, titanium and other common and difficult-to-cut metals. It supports full-process operations including turning, boring and finishing to fulfill diverse industrial precision machining needs.
Specifications
| Description | Unit | TCK600 | |||
|---|---|---|---|---|---|
| Capacity | Max.swing over bed | mm | φ650 | φ750 | |
| Max.swing over saddle | mm | φ400 | φ500 | ||
| Chuck size | inch | 10/12/15 | |||
| Travels | X-axis | mm | 300 | ||
| Y-axis | mm | ±50 | |||
| Z-axis | mm | 1100/1600/2100 | |||
| Feedrates | Rapid traverse rate X-axis | mm/min | 24 | ||
| Rapid traverse rate Y-axis | mm/min | 24 | |||
| Rapid traverse rate Z-axis | mm/min | 24 | |||
| Main Spindle | Main spindle motor power | kw | 22｛30｝ | ||
| Spindle nose | ASA | A2-8 | A2-11 | ||
| Spindle Ratio | / | 1:2 | 1:3 | ||
| Through hole of main spindle | mm | φ86 | φ105 | φ132 | |
| Bar capacity | mm | ＜75 | ＜91 | ＜120 | |
| Spindle bearing diameter (Front) | mm | 180 | 240 | 280 | |
| Max. spindle speed | r/min | 3000 | 2000 | 1500 | |
| Turret | No. of tool stations | 个 | 12 | ||
| OD tool size | mm | 25×25 | |||
| Max. boring bar size | mm | 40 | |||
| Turret indexing time (1 station swivel) | s | 0.5 | |||
| Max. rotary tool speed | r/min | BMT55(4000) | |||
| Tailstock | Tailstock guide rail | mm | 硬轨/线轨 | ||
| Sleeve diameter | mm | 100 | |||
| Tailstock of sleeve | mm | 1100/1600/2100 | |||
| Taper of sleeve hole | MT | MT5 |
