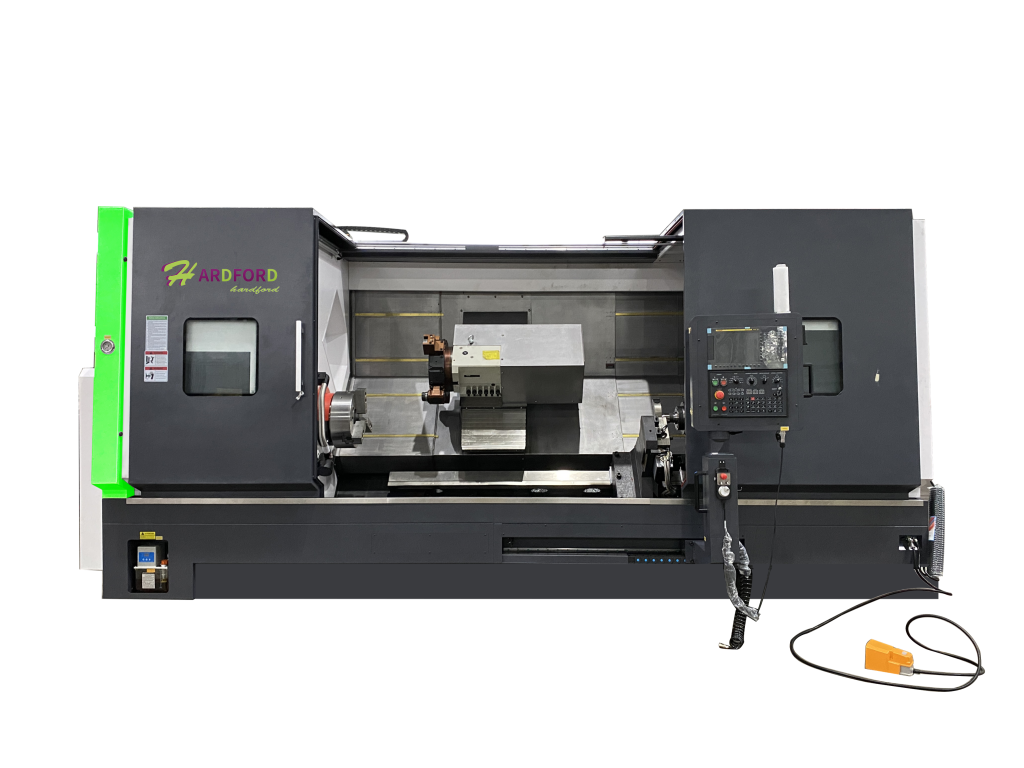

TCK700D

Multi-axis turning center

The TCK700D CNC turning center adopts an advanced turn-mill integrated design, combining precision turning and multi-axis milling functions in one machine.

Get a quote Request the brochure

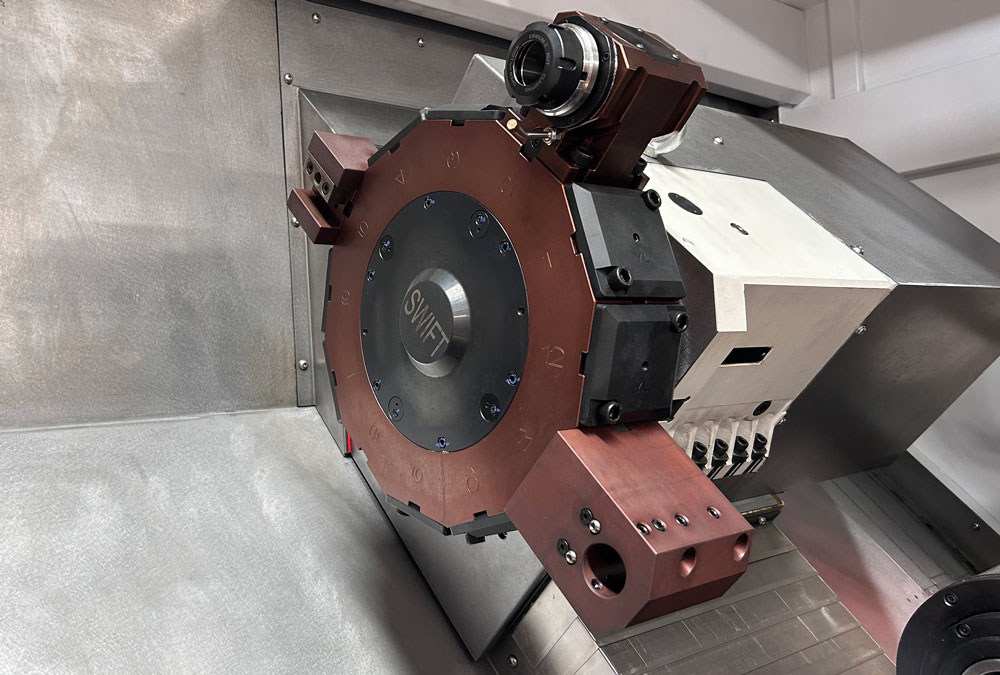

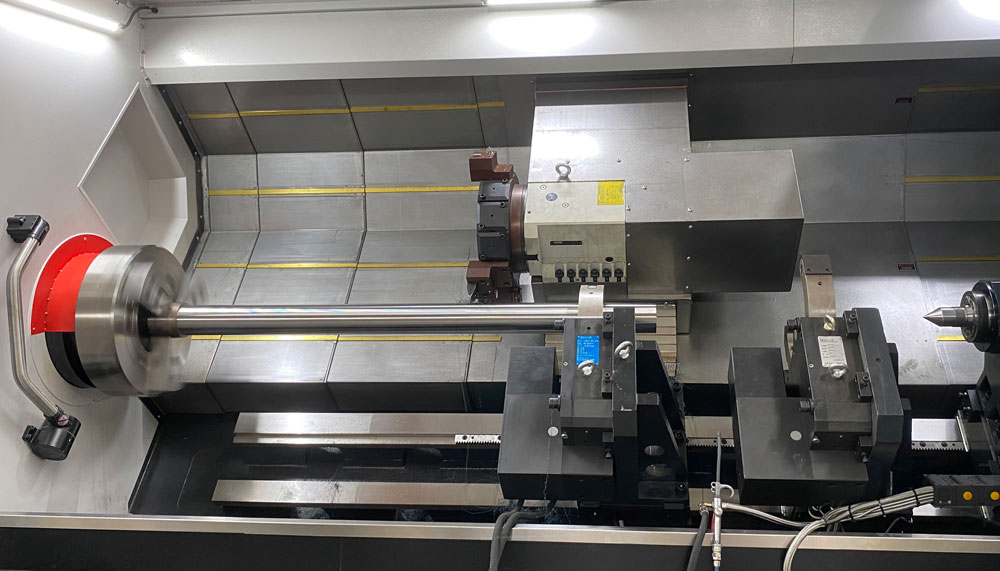

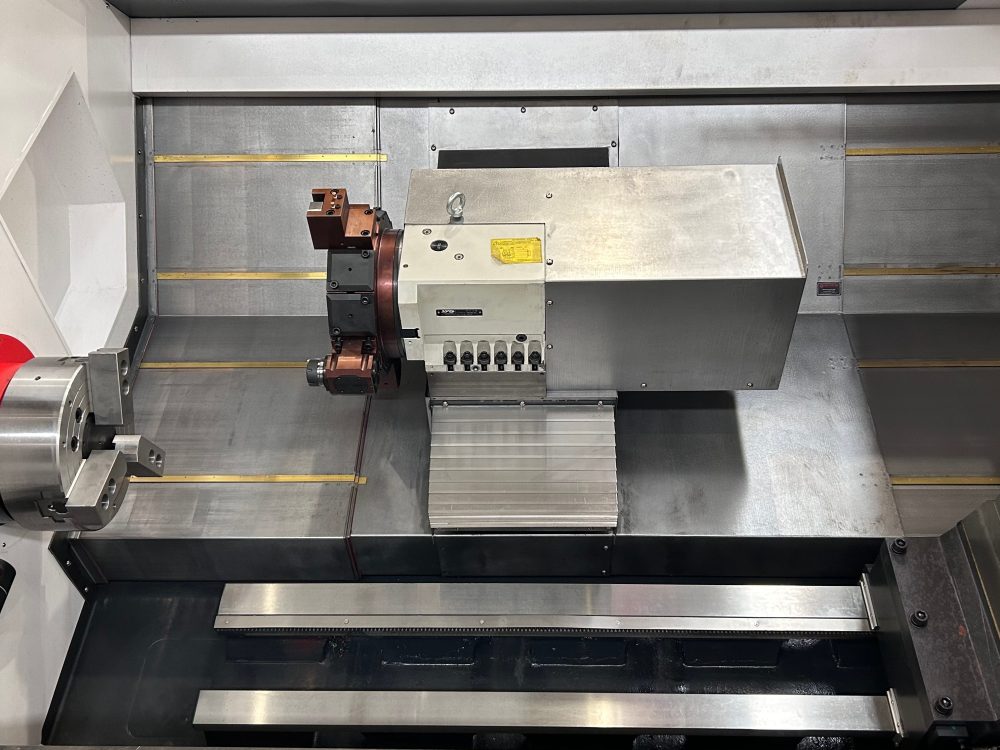

Product photo gallery

Selling points

The TCK700D Equipped with a high-rigidity structural bed, the machine delivers outstanding stability and powerful cutting capacity. It is capable of stably processing difficult-to-machine materials such as titanium alloys and high-temperature alloys, meeting the most stringent precision standards. It excels in manufacturing high-precision aerospace turbine components, complex automotive transmission parts, and large-scale structural components for energy equipment.

Specifications

Description		Unit	TCK700
Capacity	Swing over bed	mm	φ780
	Swing over saddle	mm	φ500
	Chuck size	inch	12/15/18/21/24
Travels	X-axis	mm	350
	Y-axis	mm	±75
	Z-axis	mm	1000/1500/2000/3000/4000/5000
Feedrates	Rapid traverse rate X-axis	mm/min	16
	Rapid traverse rate Y-axis	mm/min	10
	Rapid traverse rate Z-axis	mm/min	16
Main Spindle	Main spindle motor power	kw	22(30)
	Spindle Ratio	/	1:3
	Spindle Ratio optional gearbox	/	1:8
	Spindle nose	ASA	A2-8	A2-11	A2-11	A2-15
	Through hole of main spindle	mm	φ88	φ105	φ132	φ181	φ220
	Bar capacity	mm	75	90	120	166	220
	Spindle bearing diameter (Front)	mm	180	240	280	360	420
Turret	No. of tool stations	个	12
	OD tool size	mm	32×32
	Max. boring bar size	mm	50
	Turret indexing time(1 station swivel)	s	0.5
	Max. rotary tool speed	r/min	BMT65(4000)
	Rotary tool motor power	kw	5.5/6.5
Tailstock	Tail stock travel	mm	1100/1600/2100/3100/4100/5100
	Sleeve diameter	mm	150/160
	Travel of sleeve	mm	180
	Sleeve bore taper	MT	MT5/MT6
