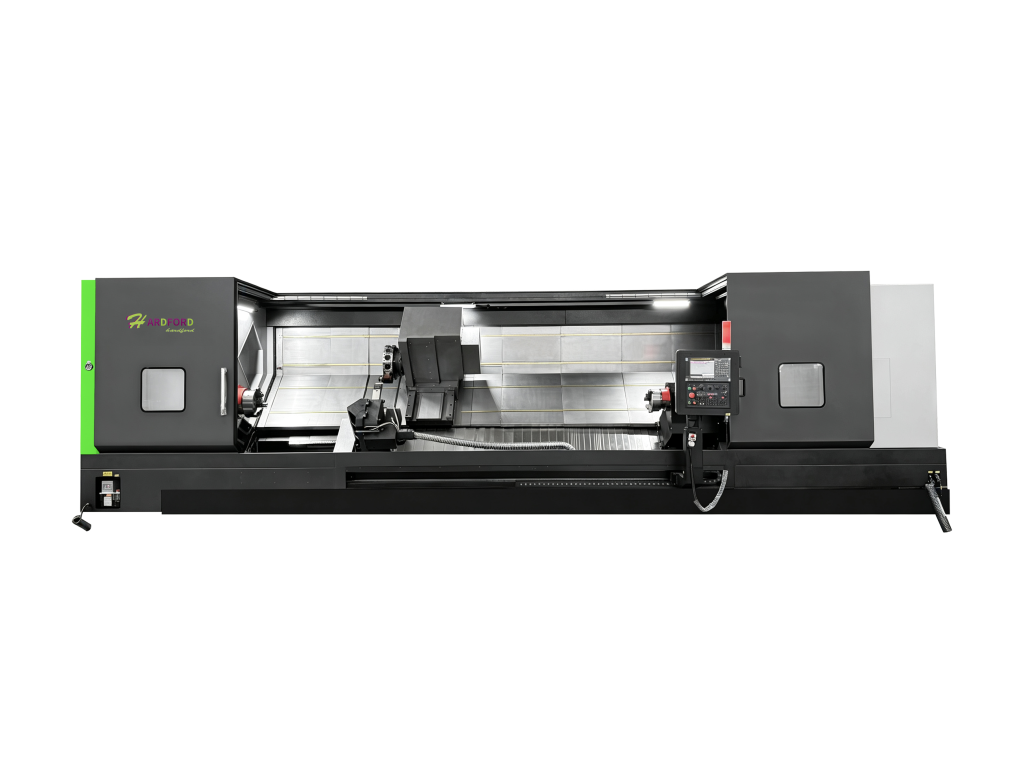

TCK700DYS

Multi-axis turning center

. High-Rigidity 45° Inclined Bed Structure . Dual Independent Spindle System & High-Efficiency Machining . Space-Saving & High-Productivity Layout

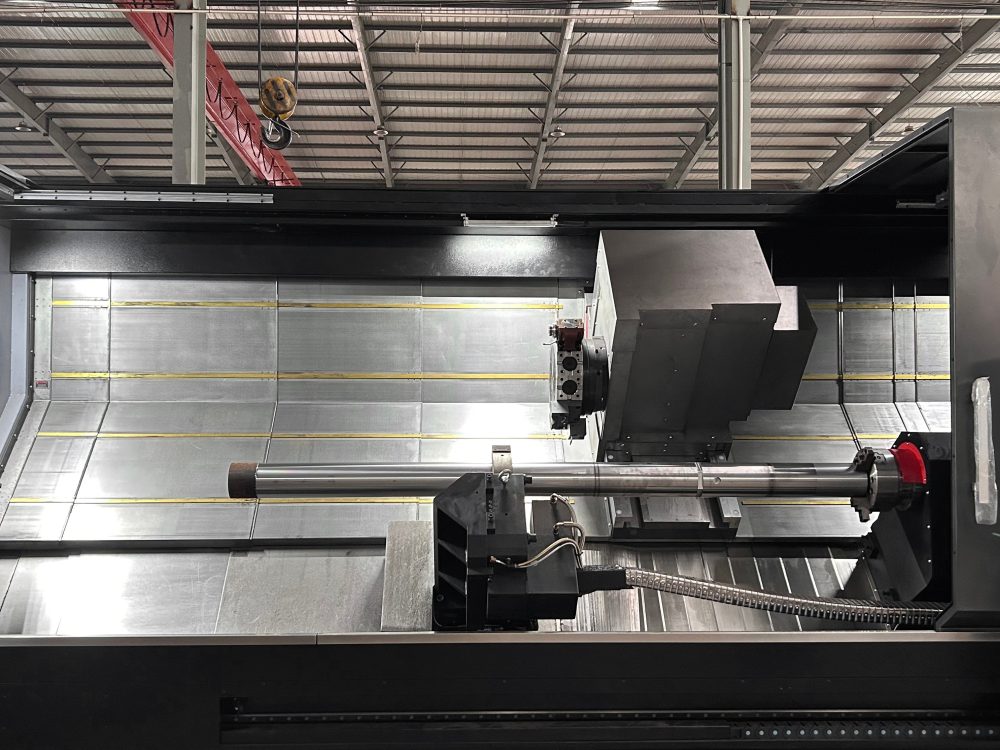

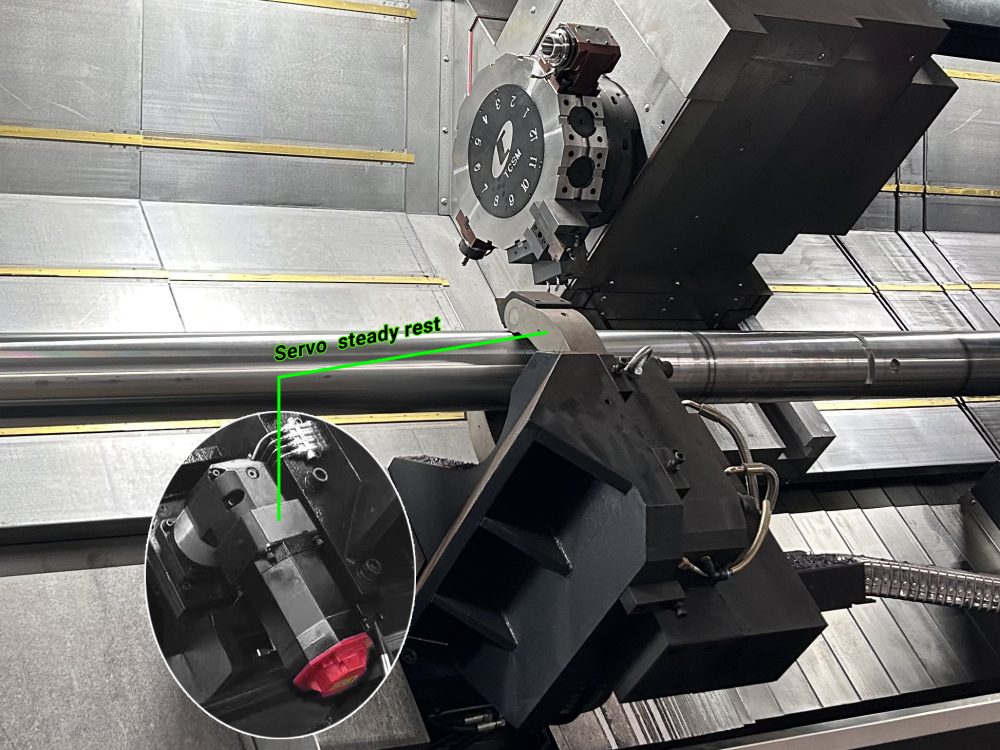

Product photo gallery

.The TCK700DYS twin-spindle CNC lathe adopts a robust right-triangular 45° slant bed structure. The angled guideway design optimizes overall mechanical performance, delivering higher structural rigidity, superior machining accuracy, stronger cutting stability and smoother chip removal compared with conventional flat-bed machines. Under the same guideway width specification, the slant bed provides a longer X-axis travel, allowing flexible installation of multi-station turrets and supporting more complex and versatile machining procedures.

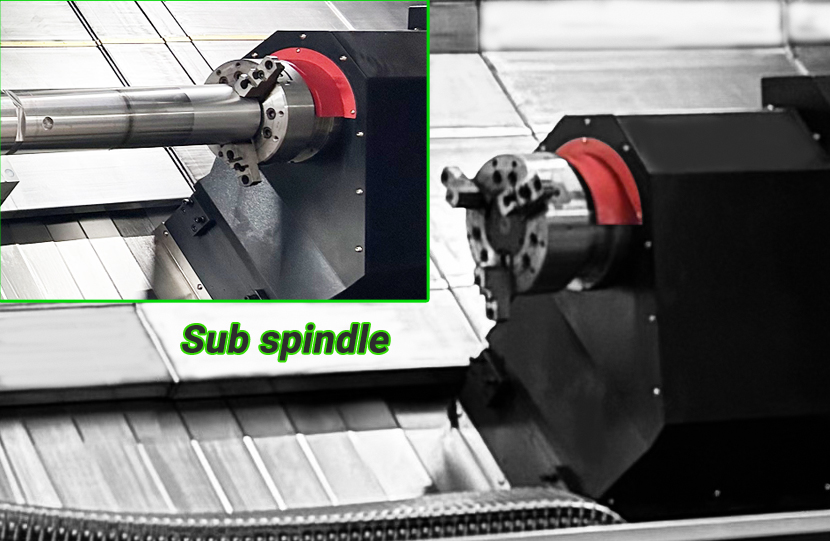

.Featuring symmetric main and sub-spindles with identical performance and independent control, the twin-spindle structure enables automatic workpiece handoff between spindles. The movable secondary spindle accurately picks up pre-machined workpieces for secondary operation, eliminating idle downtime and repeated clamping errors. Compared with traditional single-spindle lathes, this design drastically shortens cycle time, improves machining speed and consistency, and delivers outstanding flexibility for diversified and complex production requirements.
.With standardized specifications for maximum machining diameter and workpiece load capacity, the twin-spindle turning center achieves significantly higher output within the same floor space. It maximizes production efficiency while saving workshop area and reducing operational costs, making it an ideal solution for high-volume, high-precision industrial manufacturing.

Description		Unit	TCK700
Capacity	Swing over bed	mm	φ780
	Swing over saddle	mm	φ500
	Chuck size	inch	12/15/18/21/24
Travels	X-axis	mm	350
	Y-axis	mm	±75
	Z-axis	mm	1000/1500/2000/3000/4000/5000
Feedrates	Rapid traverse rate X-axis	mm/min	16
	Rapid traverse rate Y-axis	mm/min	10
	Rapid traverse rate Z-axis	mm/min	16
Main Spindle	Main spindle motor power	kw	22(30)
	Spindle Ratio	/	1:3
	Spindle Ratio optional gearbox	/	1:8
	Spindle nose	ASA	A2-8	A2-11	A2-11	A2-15
	Through hole of main spindle	mm	φ88	φ105	φ132	φ181	φ220
	Bar capacity	mm	75	90	120	166	220
	Spindle bearing diameter (Front)	mm	180	240	280	360	420
Turret	No. of tool stations	个	12
	OD tool size	mm	32×32
	Max. boring bar size	mm	50
	Turret indexing time(1 station swivel)	s	0.5
	Max. rotary tool speed	r/min	BMT65(4000)
	Rotary tool motor power	kw	5.5/6.5
Tailstock	Tail stock travel	mm	1100/1600/2100/3100/4100/5100
	Sleeve diameter	mm	150/160
	Travel of sleeve	mm	180
	Sleeve bore taper	MT	MT5/MT6
