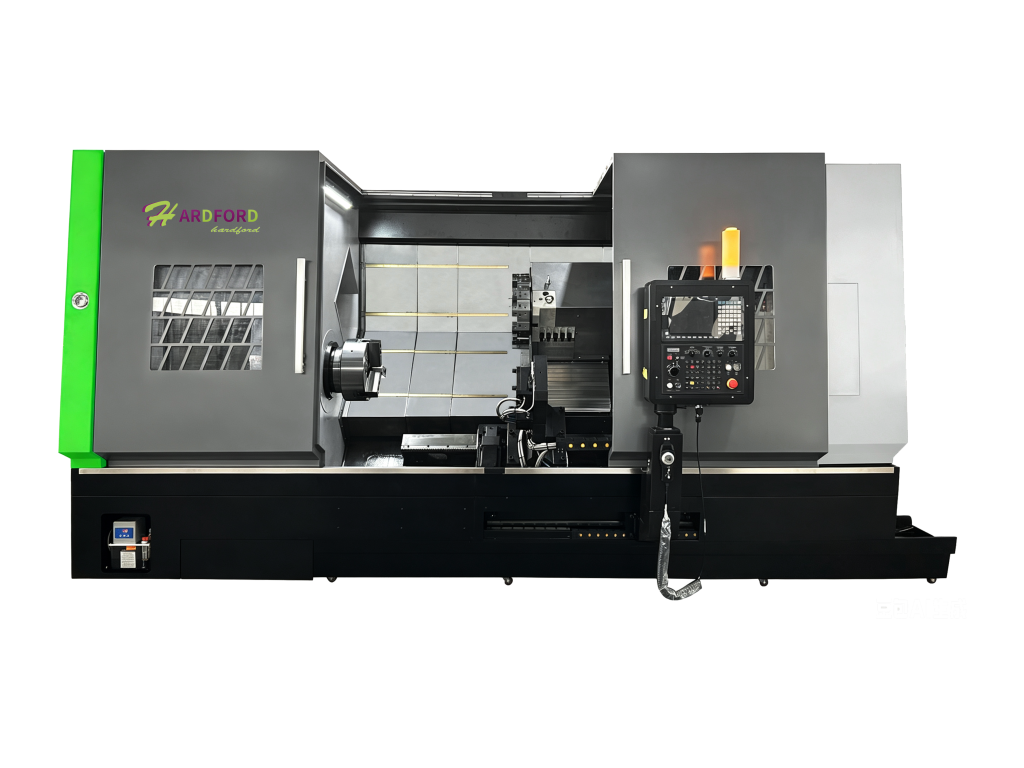

TCK800
Horizontal turning center
Core Features： .High-power Gearbox Spindle System .Wide Application Fields

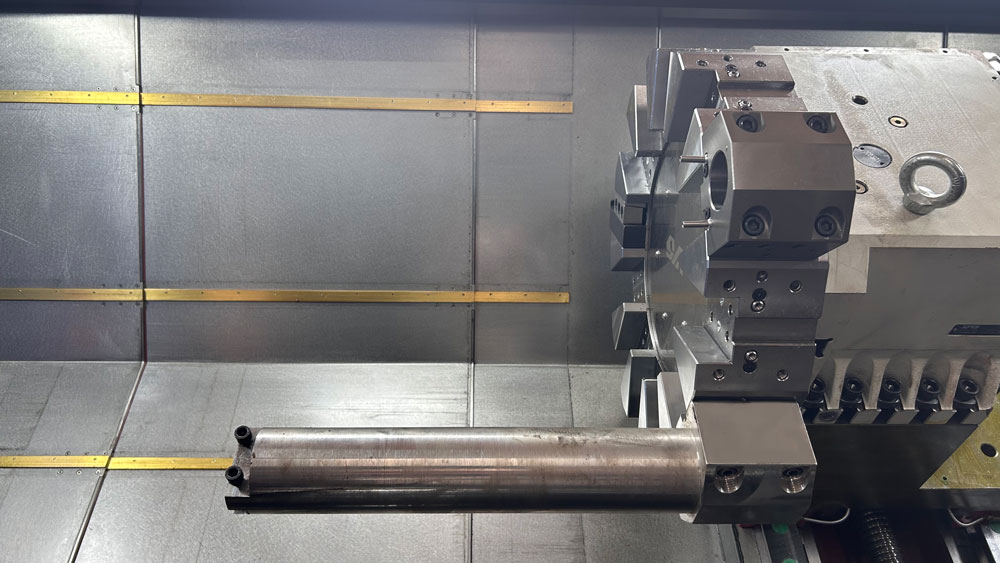

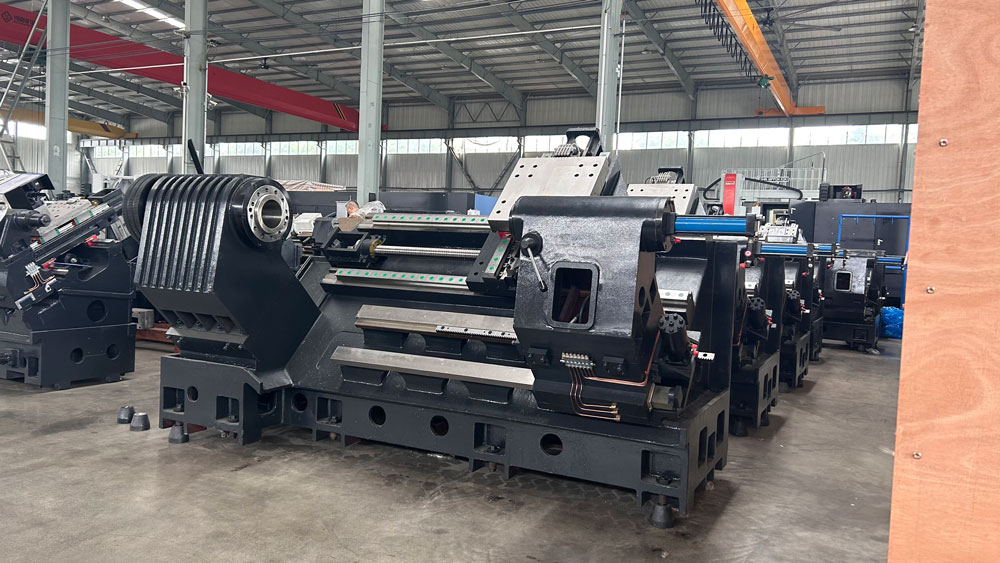

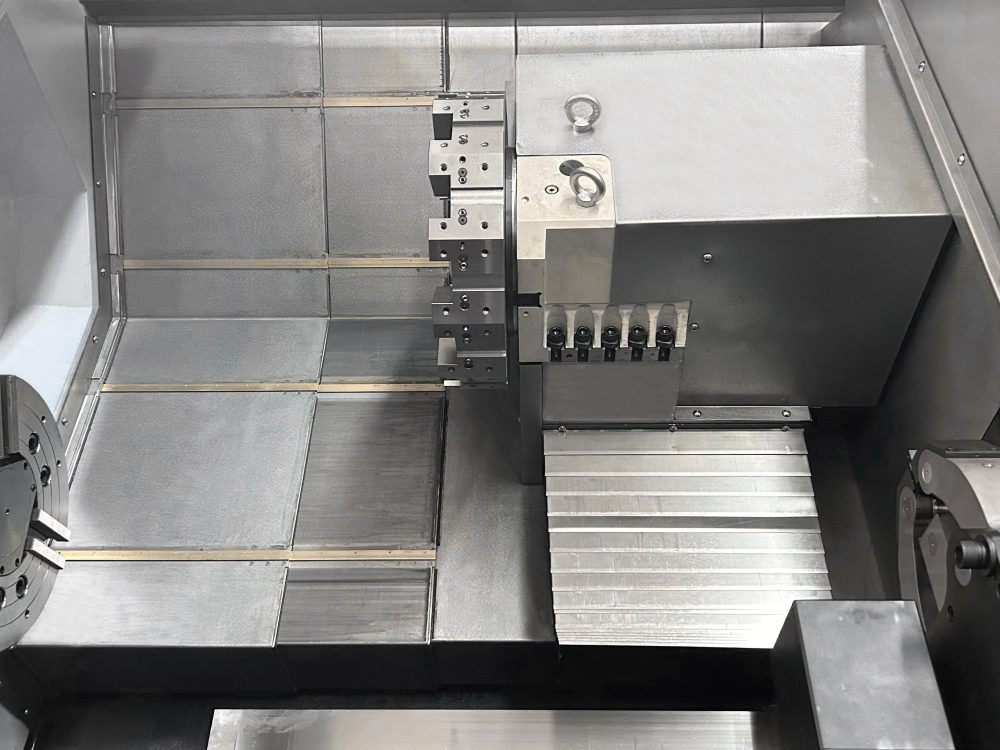

Get a quote Request the brochureProduct photo gallery
Selling points
- High-power Gearbox Spindle System：
- Equipped with a professional gearbox structure, the TCK800 series spindles deliver outstanding power and stable torque output. This superior mechanical design greatly improves overall production efficiency and enables powerful, stable heavy-duty cutting performance, easily coping with high-load and tough material machining tasks.
- Full Hydraulic Programmable Tailstock：
- The tailstock body is driven by a hydraulic motor via gear and rack transmission, while the tailstock sleeve is propelled by a hydraulic cylinder. The whole tailstock adopts automatic hydraulic locking. All movements are precisely controlled by M-code commands, realizing fully automated, stable and repeatable tailstock operation for high-precision machining.
- Wide Application Fields：
- Custom Manufacturing & Mass Production: Versatile enough to support customized prototyping, small-batch trial production and large-scale mass manufacturing, delivering consistent precision and efficiency for diversified production modes.
- Automotive Industry: Specialized in high-precision machining of core automotive components, including engine parts, gears, precision shafts and other critical mechanical components.
- Aerospace Manufacturing: Suitable for high-standard precision processing of aerospace key parts such as turbine blades, structural supports and equipment housings, meeting strict aerospace tolerance and surface quality requirements.
- Medical Device Industry: Applied to the precision manufacturing of high-precision medical components and sophisticated medical equipment parts with high surface quality and strict biocompatibility processing standards.
- Tooling & Fixture Production: Ideal for manufacturing custom industrial tools, jigs, fixtures and clamps, providing reliable and high-precision tooling solutions for various production processes.
Specifications
| Description | Unit | TCK800 | ||||
|---|---|---|---|---|---|---|
| Capacity | Swing over bed | mm | φ850 | |||
| Swing over saddle | mm | φ630 | ||||
| Chuck size | inch | 12/15/18/21/24 | ||||
| Travels | X-axis | mm | 350 | |||
| Y-axis | mm | ±75 | ||||
| Z-axis | mm | 1000/1500/2000/3000/4000/5000 | ||||
| Feedrates | Rapid traverse rate X-axis | mm/min | 16 | |||
| Rapid traverse rate Y-axis | mm/min | 10 | ||||
| Rapid traverse rate Z-axis | mm/min | 16 | ||||
| Main Spindle | Main spindle motor power | kw | 22(30) | |||
| Spindle Ratio | / | 1:3 | ||||
| Spindle Ratio optional gearbox | / | 1:8 | ||||
| Spindle nose | ASA | A2-11 | A2-15 | |||
| Through hole of main spindle | mm | φ105 | φ132 | φ181 | φ220 | |
| Bar capacity | mm | 90 | 120 | 166 | 220 | |
| Spindle bearing diameter (Front) | mm | 240 | 280 | 360 | 420 | |
| Turret | No. of tool stations | 个 | 12 | |||
| OD tool size | mm | 32×32 | ||||
| Max. boring bar size | mm | 50 | ||||
| Turret indexing time(1 station swivel) | s | 0.5 | ||||
| Max. rotary tool speed | r/min | BMT65(4000) | ||||
| Rotary tool motor power | kw | 5.5/6.5 | ||||
| Tailstock | Tail stock travel | mm | 1100/1600/2100/3100/4100/5100 | |||
| Sleeve diameter | mm | 150/160 | ||||
| Travel of sleeve | mm | 180 | ||||
| Sleeve bore taper | MT | MT5/MT6 |
